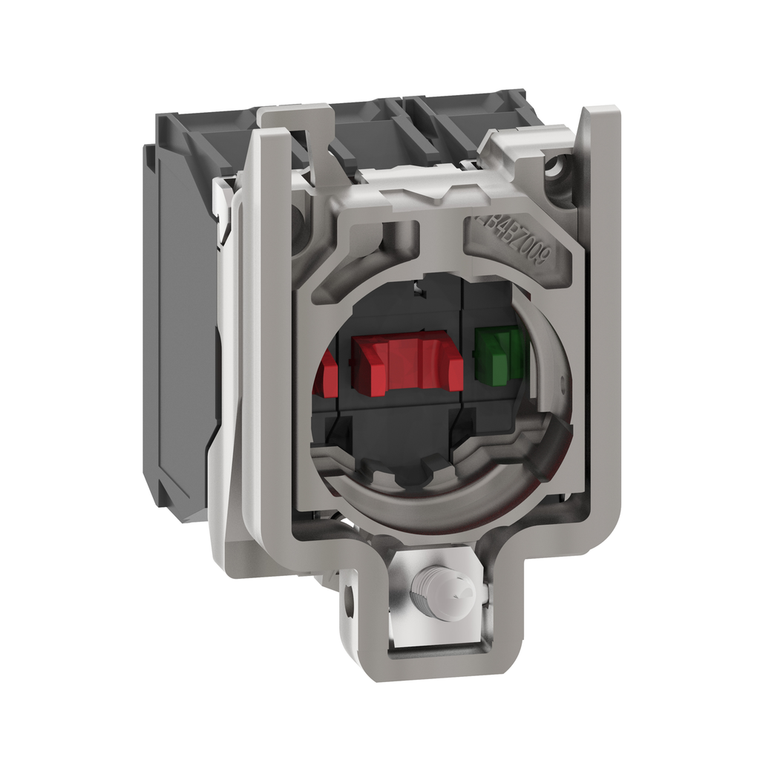

Schneider Electric ZB4BZ1023 Body + Nc Contact

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB4BZ1023 Body + Nc Contact

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4BZ1023

UPC:

3.38911E+12

MPN:

Condition:

New

Standards:

EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1

Contact Block Type:

single

Contacts Usage:

standard contacts

Connections - Terminals:

Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm

Contact Operation:

slow-break

Product Certifications:

CSA || UL || BV || DNV || GL || LROS (Lloyds register of shipping)

Toxic Heavy Metal Free:

Yes

Net Weight:

0.053 kg

Ip Degree Of Protection:

IP20 IEC 60529

Terminals Description Iso N°1:

(11-12)NC

Head Type:

standard

Cad Overall Depth:

37 mm

Electrical Durability:

10000000 cycles

Operating Travel:

1.5 mm NC changing electrical state) || 4.3 mm total travel)

Fixing Collar Material:

zamak

Range Of Product:

Harmony XB4

Product Or Component Type:

complete body/contact assembly

Protective Treatment:

TH

China Rohs Regulation:

X

Cad Overall Width:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Circularity Profile:

ENVEOLI1808008EN

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Cad Overall Height:

47 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Sale Per Indivisible Quantity:

1

Contacts Type And Composition:

1 NC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ui] Rated Insulation Voltage:

250 V 3)EN 60947-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-70 °C

Device Short Name:

ZB4

Reach Free Of Svhc:

Yes

Mechanical Durability:

5000000 cycles

Device Composition:

fixing collar || body

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-40-70 °C

Operating Force:

2 N NC changing electrical state

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Contacts Material:

silver alloy (Ag/Ni)

Environmental Disclosure:

ENVPEP1808008EN
