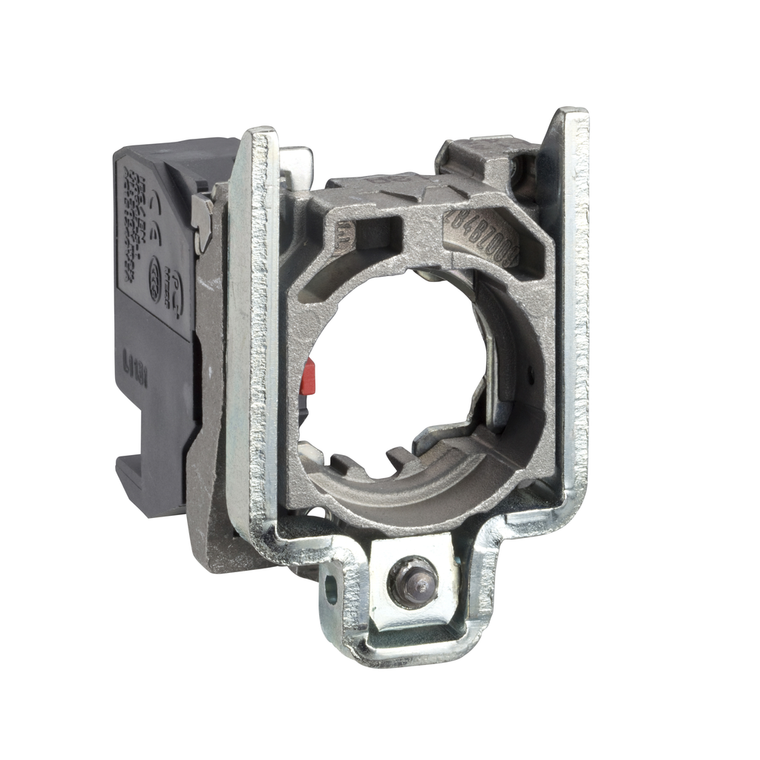

Schneider Electric ZB4BZ1024 Connect Terminal Cont Bod
SKU:
ZB4BZ1024
UPC:
3389110889444
MPN:
Condition:
New
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Ip Degree Of Protection:
IP20 IEC 60529
Ambient Air Temperature For Storage:
-40-70 °C
Connections - Terminals:
plug-in connector
Rohs Exemption Information:
Yes
Contacts Material:
silver alloy (Ag/Ni)
Contacts Type And Composition:
1 NC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
Product Or Component Type:
complete body/contact assembly
Contacts Usage:
standard contacts
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Protective Treatment:
TH
Cad Overall Width:
30 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP1808008EN
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Fixing Collar Material:
zamak
Cad Overall Height:
47 mm
Contact Operation:
slow-break
Device Composition:
body || fixing collar
Range Of Product:
Harmony XB4
[Ui] Rated Insulation Voltage:
250 V 3)EN 60947-1
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN 60947-1
Warranty:
18 months
Circularity Profile:
ENVEOLI1808008EN
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Toxic Heavy Metal Free:
Yes
Contact Block Type:
single
Device Short Name:
ZB4
Product Certifications:
CSA || BV || DNV || UL || LROS (Lloyds register of shipping) || GL
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
China Rohs Regulation:
X
Net Weight:
0.05 kg
Standards:
EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-1
Mechanical Durability:
5000000 cycles
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Short-Circuit Protection:
4 A cartridge fuse gG EN/IEC 60947-5-1
Mercury Free:
Yes
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Operation:
-40-70 °C
Electrical Durability:
10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

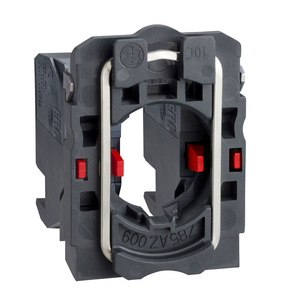

This Harmony ZB5AZ1014 is a single contact block with body/fixing collar, 1 NO plug-in connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot...
