Schneider Electric ZB4BZ1045 Complete Body With 2 Nc Spring Terminal
Schneider Electric
$42.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

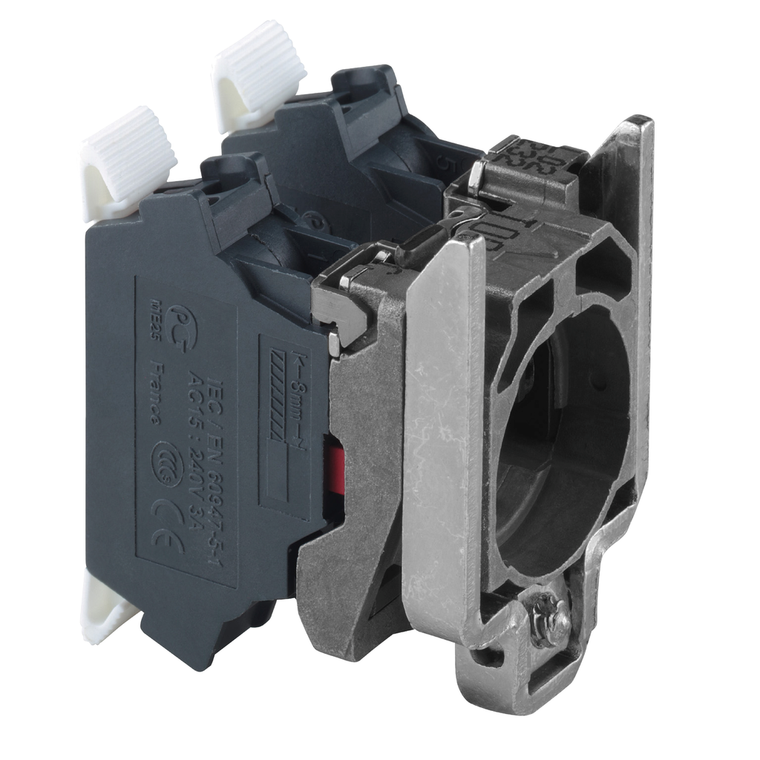

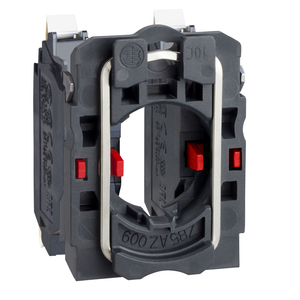

Schneider Electric ZB4BZ1045 Complete Body With 2 Nc Spring Terminal
Complete body/contact assembly, Harmony XB4, single contact, with fixing collar, metal, 2 NC, compact push-in terminals
- Toxic Heavy Metal Free:
- Yes
- Operating Travel:
- 1.5 mm NC changing electrical state) || 4.3 mm total travel)
- Cad Overall Depth:
- 30 mm
- Cad Overall Height:
- 27.6 mm
- Fixing Collar Material:
- zamak
- Cad Overall Width:
- 46.2 mm
- Ip Degree Of Protection:
- IP20 IEC 60529
- Range Of Product:
- Harmony XB4
- Contacts Material:
- silver alloy (Ag/Ni)
- Contacts Usage:
- standard contacts
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP1808008EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Durability:
- 10000000 cycles
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Type And Composition:
- 2 NC
- Standards:
- IEC 60947-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Head Type:
- standard
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contact Operation:
- slow-break
- Sale Per Indivisible Quantity:
- 1
- Contact Block Type:
- single
- Product Or Component Type:
- complete body/contact assembly
- Mechanical Durability:
- 10000000 cycles
- Terminals Description Iso N°1:
- (11-12)NC
- Device Composition:
- fixing collar || body
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB4
- Protective Treatment:
- TH
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- UL || BV || CSA || GL || LROS (Lloyds register of shipping) || DNV
- Connections - Terminals:
- spring clamp terminals
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1808008EN
- Net Weight:
- 0.054 kg
