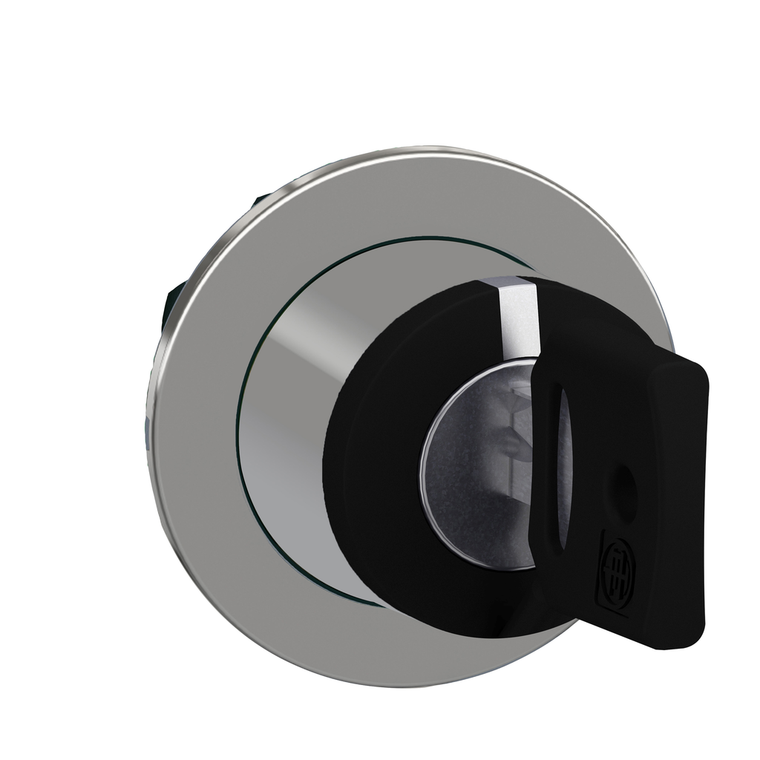

Schneider Electric ZB4FG3 Flush Sw Head Key455 3Pos Stay Put
Schneider Electric
$90.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Ik Degree Of Protection:
- IK06
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Bezel Material:
- chromium plated metal
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Mounting Diameter:
- 30.5 mm
- Key Withdrawal Position:
- center
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Overvoltage Category:
- class I IEC 60536
- Cad Overall Depth:
- 49 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.133 kg
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Cad Overall Height:
- 36.6 mm
- Cad Overall Width:
- 36.6 mm
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XB4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- stay put
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Device Short Name:
- ZB4F
- Circularity Profile:
- ENVEOLI1808008EN
- Product Or Component Type:
- head for key selector switch
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Position Information:
- 3 positions +/- 45°
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Head Type:
- built-in-flush
- Operator Profile:
- black key switch
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Keylock:
- key 455
- Protective Treatment:
- TH
