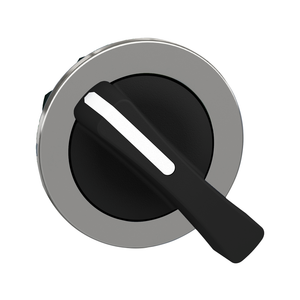

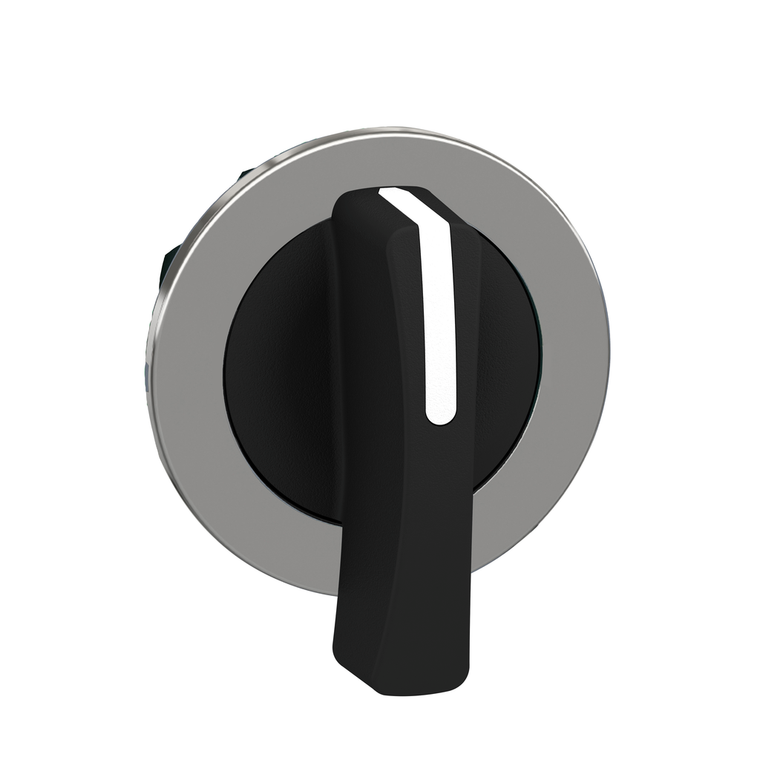

Schneider Electric ZB4FJ3 Flush Bk Sw Head Long Handle 3P Stay Put
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 30.5 mm
- Net Weight:
- 0.078 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Device Short Name:
- ZB4F
- Mechanical Durability:
- 1000000 cycles
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for selector switch
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Operator Additional Information:
- non padlockable
- Operator Profile:
- black long handle
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Circularity Profile:
- ENVEOLI1808008EN
- Device Presentation:
- basic element
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK06 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Overvoltage Category:
- class I IEC 60536
- Range Of Product:
- Harmony XB4
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Head Type:
- built-in-flush
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Cad Overall Height:
- 43 mm
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 47 mm
- Environmental Disclosure:
- ENVPEP1808008EN
- Type Of Operator:
- stay put
- Bezel Material:
- chromium plated metal
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 3 positions +/- 45°
- Cad Overall Width:
- 36.6 mm
