Schneider Electric ZB4FL2 Flush Bk Projecting Pb Head

Schneider Electric ZB4FL2 Flush Bk Projecting Pb Head

Schneider Electric
SKU:
ZB4FL2
|
UPC:
3.60649E+12
$13.30
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

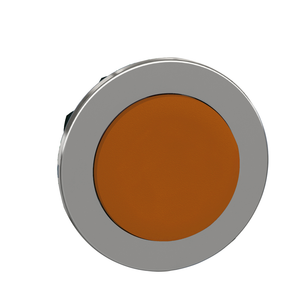

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Additional Information
Operator Profile:
black projecting, unmarked
Overvoltage Category:
class I IEC 60536
Shape Of Signaling Unit Head:
round
Range Of Product:
Harmony XB4
Mounting Diameter:
30.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Storage:
-40-70 °C
Bezel Material:
chromium plated metal
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Cad Overall Height:
36.6 mm
Protective Treatment:
TH
Circularity Profile:
ENVEOLI1808008EN
Product Certifications:
UL Listed || CSA || CCC || EAC
Mechanical Durability:
10000000 cycles
Cad Overall Depth:
33 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ik Degree Of Protection:
IK06 IEC 50102
Product Or Component Type:
head for non-illuminated push-button
Environmental Disclosure:
ENVPEP1808008EN
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation:
-40-70 °C
Device Presentation:
basic element
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Head Type:
built-in-flush
Electrical Composition Code:
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Device Short Name:
ZB4F
Cad Overall Width:
36.6 mm
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Standards:
CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Type Of Operator:
spring return
