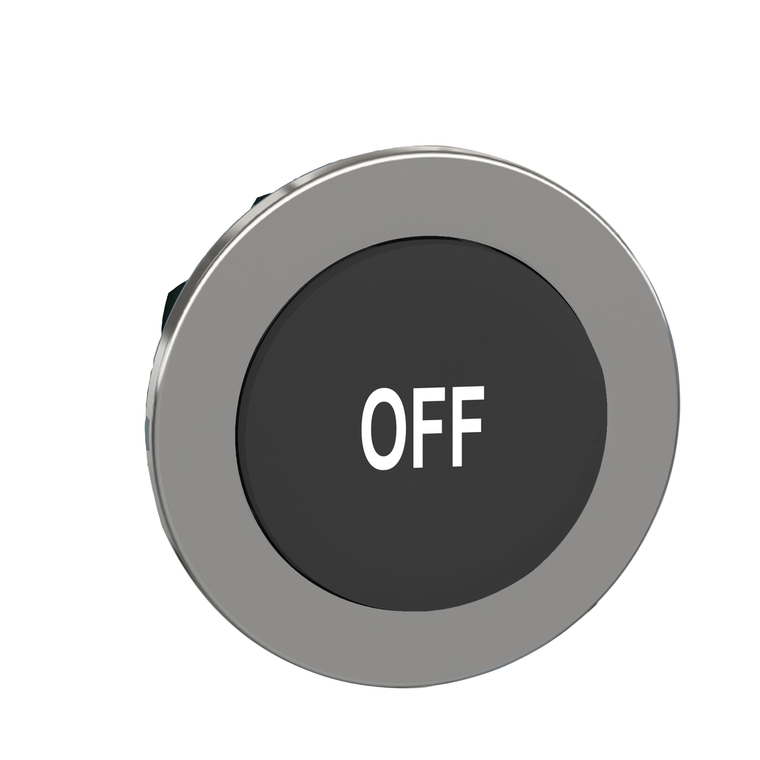

Schneider Electric ZB4FL235 Flush Bk Project Pb Head Wh Marked Off
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Warranty:
- 18 months
- Product Or Component Type:
- head for non-illuminated push-button
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Operator:
- spring return
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- ZB4F
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Cad Overall Depth:
- 33 mm
- Cad Overall Height:
- 36.6 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 50102
- Head Type:
- built-in-flush
- Operator Profile:
- black projecting, OFF white)
- Bezel Material:
- chromium plated metal
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Shape Of Signaling Unit Head:
- round
- Environmental Disclosure:
- ENVPEP1808008EN
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Overvoltage Category:
- class I IEC 60536
- Range Of Product:
- Harmony XB4
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Cad Overall Width:
- 36.6 mm
