Schneider Electric ZB4FL435 Flush Red Project Pb Head Wh Marked Off
Schneider Electric
$18.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

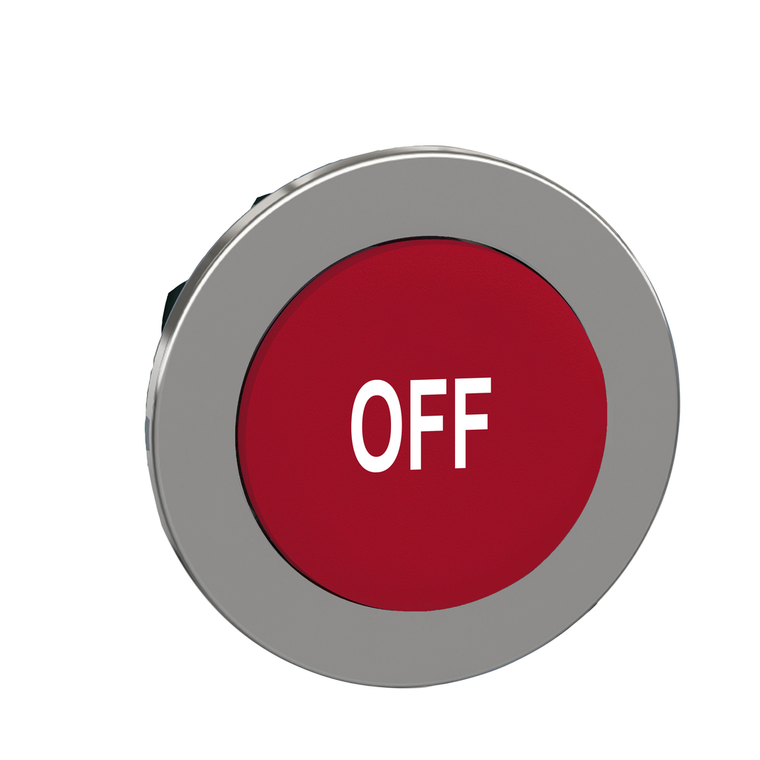

Schneider Electric ZB4FL435 Flush Red Project Pb Head Wh Marked Off
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Cad Overall Depth:
- 33 mm
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- chromium plated metal
- Protective Treatment:
- TH
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 36.6 mm
- Shape Of Signaling Unit Head:
- round
- Device Presentation:
- basic element
- Head Type:
- built-in-flush
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Operator:
- spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Device Short Name:
- ZB4F
- Ambient Air Temperature For Storage:
- -40-70 °C
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Mounting Diameter:
- 30.5 mm
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Environmental Disclosure:
- ENVPEP1808008EN
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- head for non-illuminated push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 36.6 mm
- Overvoltage Category:
- class I IEC 60536
- Operator Profile:
- red projecting, OFF white)
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB4
- Mercury Free:
- Yes
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Circularity Profile:
- ENVEOLI1808008EN
