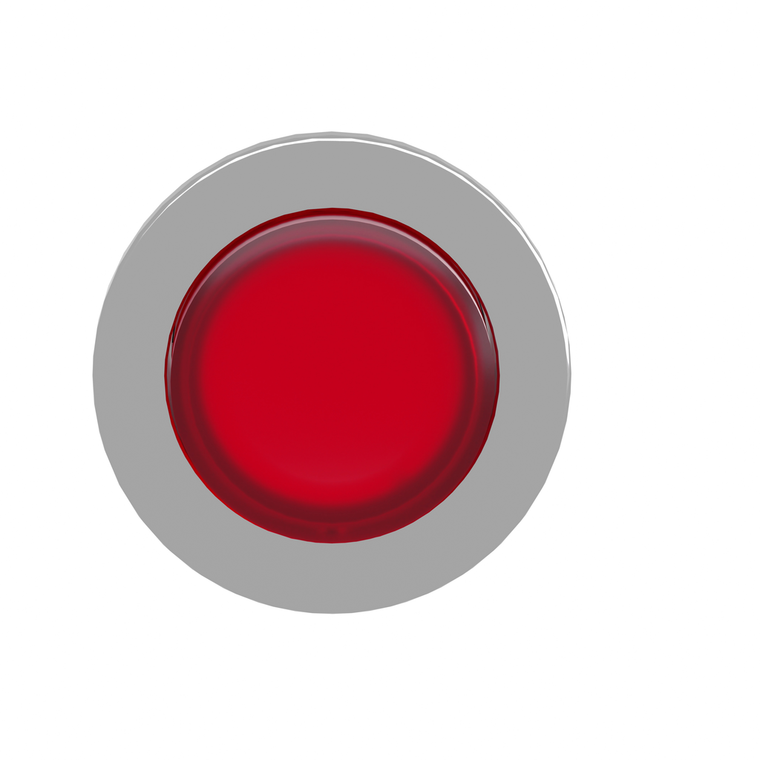

Schneider Electric ZB4FW143 Flush Red Projecting Ill Pb Head Led
Schneider Electric
$9.78
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Operator Profile:
- red projecting, unmarked
- Reach Free Of Svhc:
- Yes
- Overvoltage Category:
- class I IEC 60536
- China Rohs Regulation:
- X
- Mechanical Durability:
- 10000000 cycles
- Head Type:
- built-in-flush
- Net Weight:
- 0.06 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- chromium plated metal
- Mercury Free:
- Yes
- Device Short Name:
- ZB4F
- Operator Additional Information:
- with plain lens
- Product Or Component Type:
- head for illuminated push-button
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Height:
- 36.6 mm
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Range Of Product:
- Harmony XB4
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Warranty:
- 18 months
- Ik Degree Of Protection:
- IK06 EN 50102
- Environmental Disclosure:
- ENVPEP1808008EN
- Cad Overall Width:
- 36.6 mm
- Cad Overall Depth:
- 35 mm
- Circularity Profile:
- ENVEOLI1808008EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Compatibility:
- universal LED
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Type Of Operator:
- spring return
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
