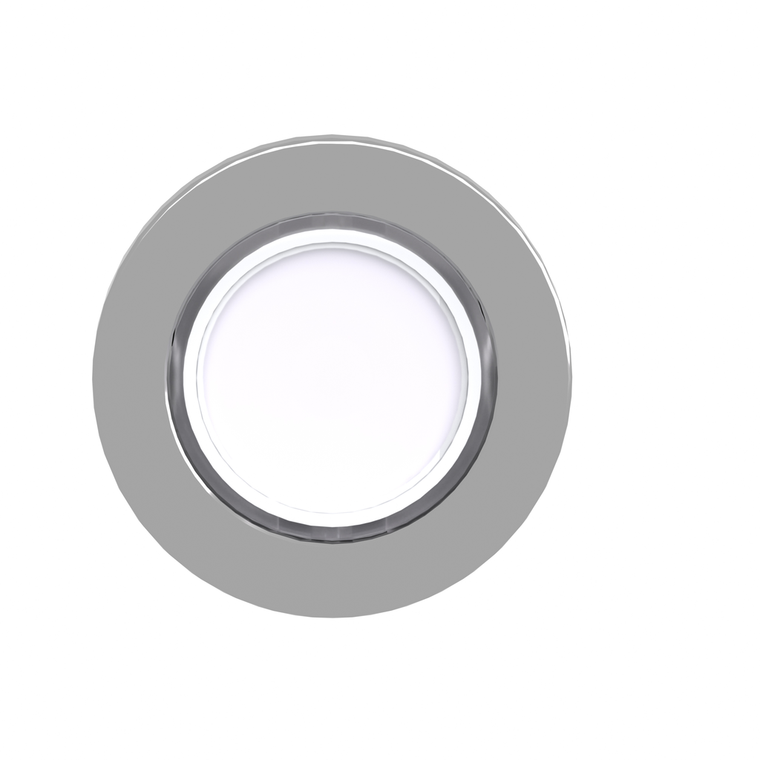

Schneider Electric ZB4FW313 Flush Wh Projecting Caps Ill Pb Head Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB4FW313 Flush Wh Projecting Caps Ill Pb Head Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB4FW313

UPC:

3606489582654

MPN:

Condition:

New

Device Short Name:

ZB4F

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1

Product Or Component Type:

head for illuminated push-button

Head Type:

built-in-flush

Type Of Operator:

spring return

Bezel Material:

chromium plated metal

Ambient Air Temperature For Operation:

-40-70 °C

Operator Additional Information:

with plain lens

Shape Of Signaling Unit Head:

round

Mounting Diameter:

30.5 mm

Product Certifications:

UL Listed || CSA || CCC || EAC

Sale Per Indivisible Quantity:

1

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Circularity Profile:

ENVEOLI1808008EN

Range Of Product:

Harmony XB4

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Device Presentation:

basic element

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Environmental Disclosure:

ENVPEP1808008EN

Net Weight:

0.06 kg

Warranty:

18 months

Overvoltage Category:

class I IEC 60536

Cad Overall Height:

36.6 mm

Ik Degree Of Protection:

IK06 EN 50102

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc:

Yes

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

Protective Treatment:

TH

Operator Profile:

white flush, unmarked

Product Compatibility:

universal LED

Cad Overall Depth:

31 mm

Cad Overall Width:

36.6 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Mechanical Durability:

10000000 cycles

China Rohs Regulation:

X

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product
