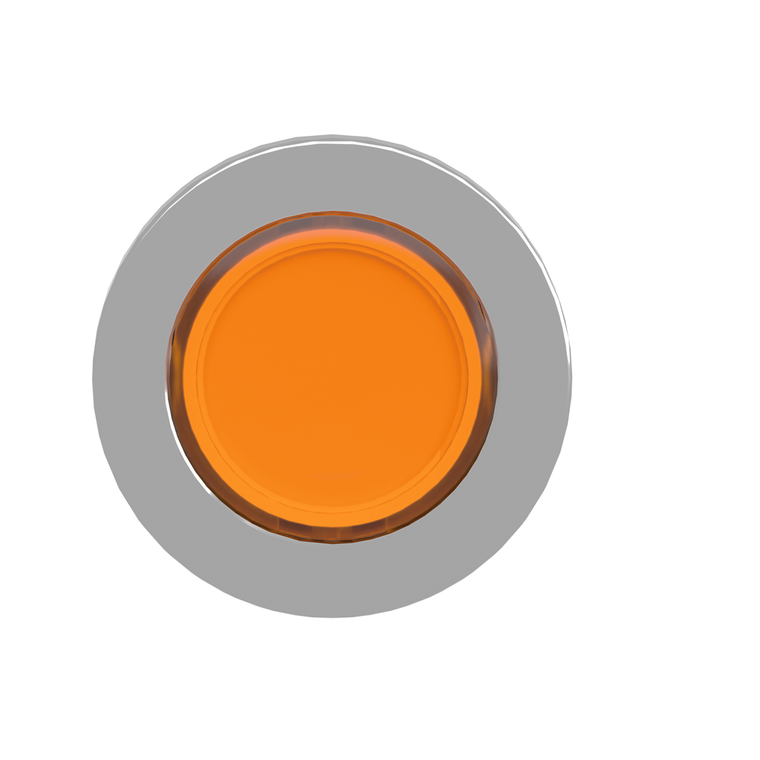

Schneider Electric ZB4FW353 Flush Or Projecting Caps Ill Pb Head Led
Schneider Electric
$18.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Range Of Product:
- Harmony XB4
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- built-in-flush
- Environmental Disclosure:
- ENVPEP1808008EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Bezel Material:
- chromium plated metal
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Product Or Component Type:
- head for illuminated push-button
- Mechanical Durability:
- 10000000 cycles
- Device Presentation:
- basic element
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Additional Information:
- with plain lens
- Protective Treatment:
- TH
- Operator Profile:
- orange flush, unmarked
- Cad Overall Height:
- 36.6 mm
- Warranty:
- 18 months
- Net Weight:
- 0.06 kg
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class I IEC 60536
- Product Compatibility:
- universal LED
- Type Of Operator:
- spring return
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Cad Overall Depth:
- 31 mm
- Ik Degree Of Protection:
- IK06 EN 50102
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1808008EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 30.5 mm
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 36.6 mm
- Device Short Name:
- ZB4F
- Reach Free Of Svhc:
- Yes
- Sale Per Indivisible Quantity:
- 1
