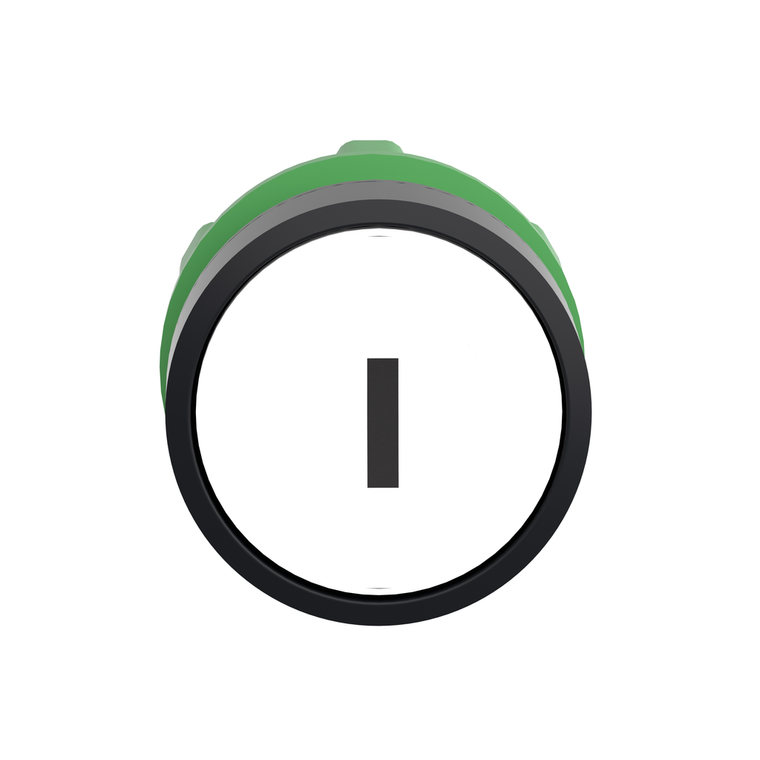

Schneider Electric ZB5AA131 Pushbutton Operator Head
Schneider Electric
$18.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AA131 Pushbutton Operator Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Mounting Diameter:
- 22 mm
- Overvoltage Category:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 10000000 cycles
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710010EN
- Protective Treatment:
- TH
- Operator Profile:
- white flush, I black)
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB5
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 28 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic element
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.018 kg
- Warranty:
- 18 months
- Head Type:
- standard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 29 mm
- Bezel Material:
- dark grey plastic
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Or Component Type:
- head for non-illuminated push-button
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Product Certifications:
- BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || CSA
- Datasheet:
- View
