Schneider Electric ZB5AA26 Pushbutton Operator Head Pack of 48
Schneider Electric
$1,545.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

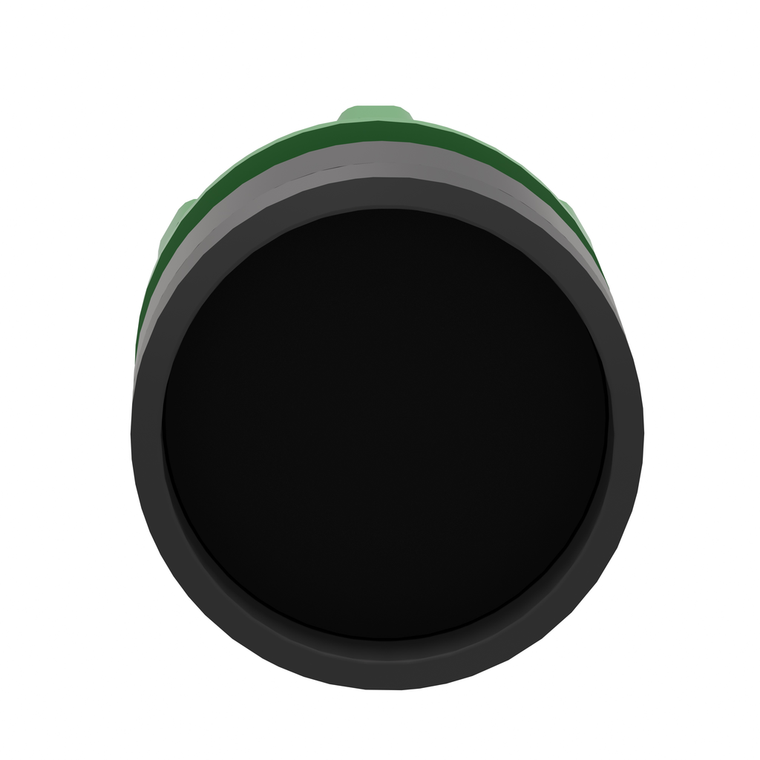

Schneider Electric ZB5AA26 Pushbutton Operator Head Pack of 48
This button black head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Environmental Disclosure:
- ENVPEP1710010EN
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Additional Information:
- high guard
- Circularity Profile:
- ENVEOLI1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Cad Overall Width:
- 29 mm
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Standards:
- UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 31 mm
- Sustainable Offer Status:
- Green Premium product
- Bezel Material:
- dark grey plastic
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Or Component Type:
- head for non-illuminated push-button
- China Rohs Regulation:
- X
- Mechanical Durability:
- 10000000 cycles
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Warranty:
- 18 months
- Net Weight:
- 0.02 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- black recessed, unmarked
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic element
- Type Of Operator:
- spring return
- Product Certifications:
- CSA || BV || LROS (Lloyds register of shipping) || GL || DNV || UL Listed
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
