Schneider Electric ZB5AA34 Pushbutton Operator Head

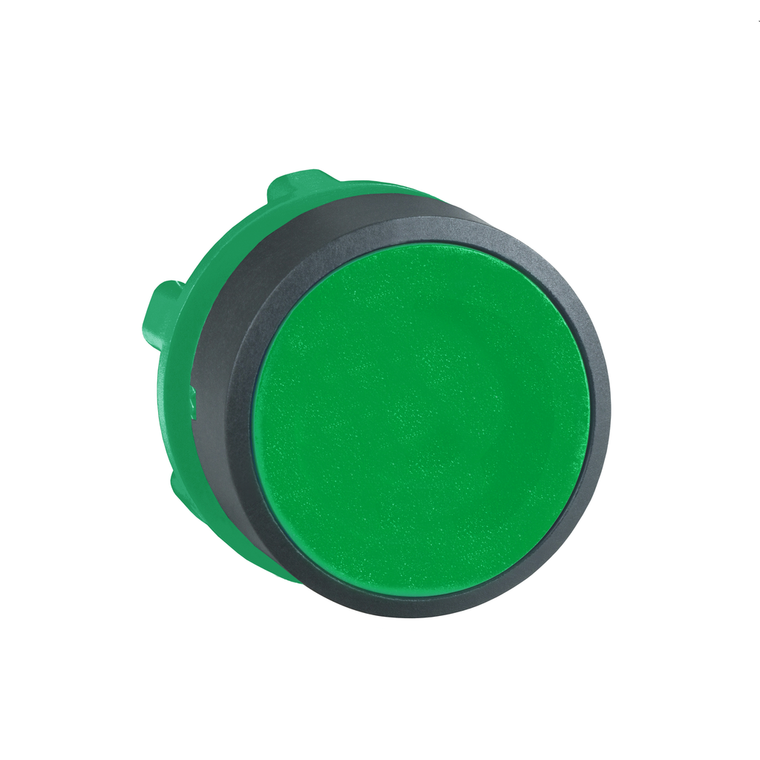

This green flush button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Net Weight:
- 0.02 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- Type Of Operator:
- spring return
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || UL Listed || BV || GL || DNV
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Overvoltage Category:
- class II IEC 60536
- Circularity Profile:
- ENVEOLI1710010EN
- Product Or Component Type:
- head for non-illuminated push-button
- Sale Per Indivisible Quantity:
- 1
- Bezel Material:
- dark grey plastic
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Depth:
- 31 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operator Additional Information:
- high guard
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- green flush, unmarked
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 29 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 29 mm
- Head Type:
- standard
