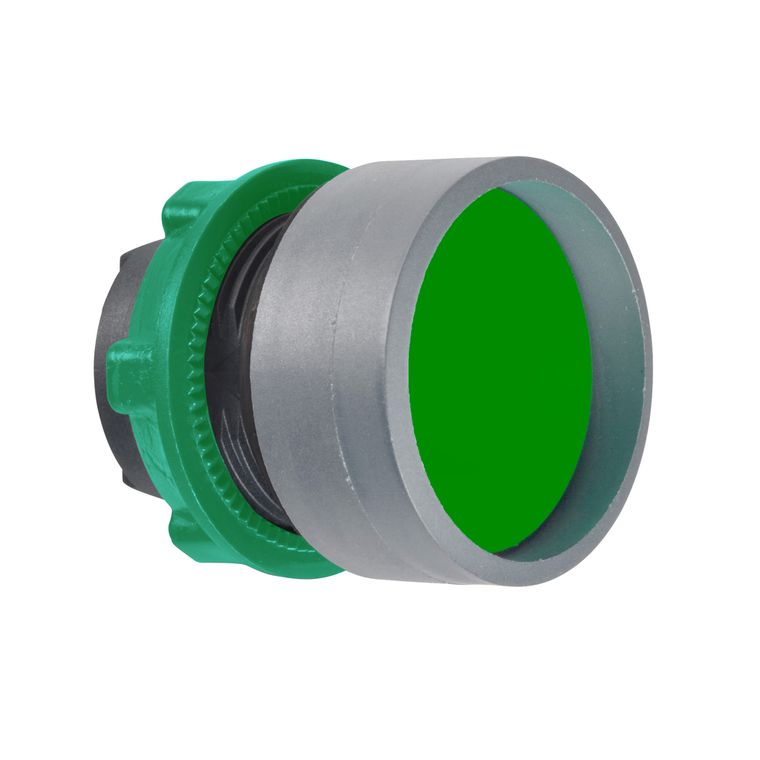

Schneider Electric ZB5AA36C0 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AA36C0 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AA36C0

UPC:

3.60649E+12

MPN:

Condition:

New

Bezel Material:

plastic colour plated grey

Product Or Component Type:

head for non-illuminated push-button

China Rohs Regulation:

X

Device Short Name:

ZB5

Operator Profile:

green recessed, unmarked

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

Range Of Product:

Harmony XB5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Protective Treatment:

TH

Cad Overall Width:

29 mm

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Sale Per Indivisible Quantity:

1

Head Type:

standard

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Additional Information:

high guard

Overvoltage Category:

class II IEC 60536

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Depth:

31 mm

Ik Degree Of Protection:

IK03 IEC 50102

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Mercury Free:

Yes

Mechanical Durability:

10000000 cycles

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Diameter:

22 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

29 mm

Type Of Operator:

spring return

Rohs Exemption Information:

Yes

Net Weight:

0.02 kg

Product Certifications:

CSA || LROS (Lloyds register of shipping) || UL Listed || DNV || GL || BV
