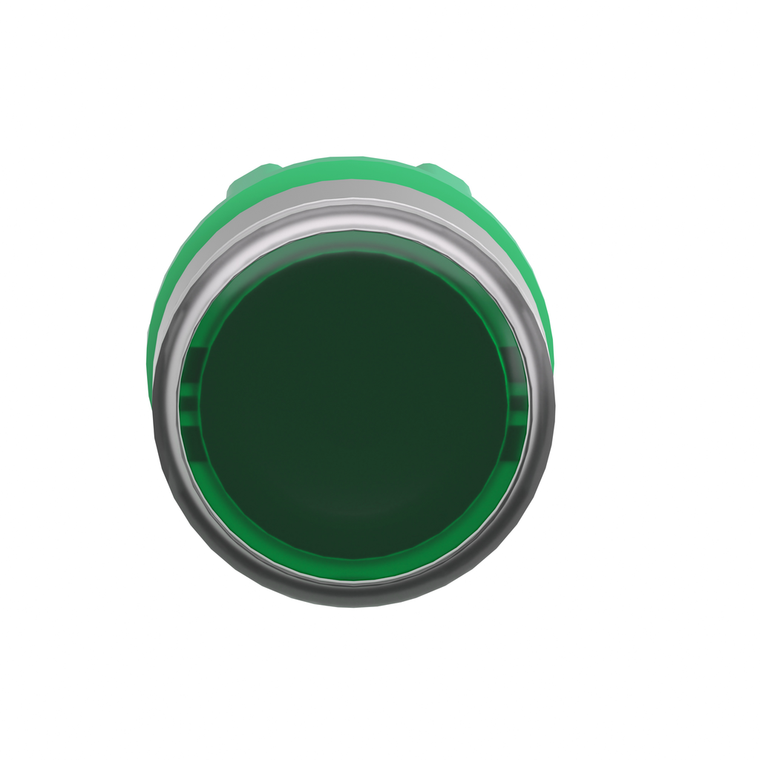

Schneider Electric ZB5AA38C0 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AA38C0 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AA38C0

UPC:

3606489762346

MPN:

Condition:

New

Operator Additional Information:

for insertion of legend

Device Short Name:

ZB5

Main Group:

illum push-button

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Mechanical Durability:

10000000 cycles

Cap/Operator Or Lens Colour:

green

Shape Of Signaling Unit Head:

round

Net Weight:

0.018 kg

Operator Profile:

green flush, unmarked

Bezel Material:

plastic colour plated grey

Range Of Product:

Harmony XB5

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Protective Treatment:

TC

Product Certifications:

BV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || DNV

Ik Degree Of Protection:

IK03 EN 50102

Group Of Product:

flush push with inser of legend

Cad Overall Depth:

30 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Presentation:

basic element

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Compatibility:

universal LED

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

29 mm

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

head for illuminated push-button

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Marking:

unmarked

China Rohs Regulation:

X

Mercury Free:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

EN/IEC 60947-1 || JIS C8201-5-1 || GB 14048.5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1

Type Of Operator:

spring return

Overvoltage Category:

class II IEC 60536

Mounting Diameter:

22 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Head Type:

standard

Cad Overall Height:

29 mm

Sale Per Indivisible Quantity:

1
