Schneider Electric ZB5AA3TQ Pushbutton Operator Head Pack of 100
Schneider Electric
$1,300.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

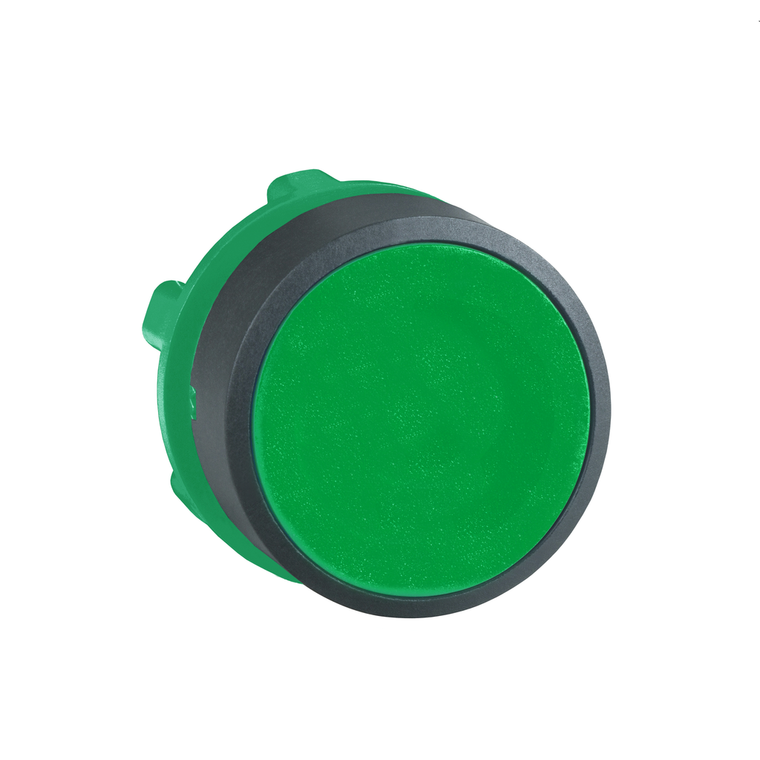

Schneider Electric ZB5AA3TQ Pushbutton Operator Head Pack of 100
XB5/ZB5 22mm push buttons are for industrial applications. XB5/ZB5 operators have plastic bezels that connect to a plastic mounting collar. Operator is a green round full guard momentary push button. Push button has no marking on it. Push button is 1.14 inches tall, 1.14 inches wide and 1.10 inches deep. Selector switch weighs 0.04 lbs. Operator is NEMA 4, 4X and 13 rated. Push buttons are bulk packaged in quantities of 100. Push button operator is UL Listed and CSA certified. "It is ideal for food and beverages, chemical industry, paper mill and marine applications. It is also suitable for the service sector and infrastructure applications." "This product is certified by CSA, BV, UL listed, LROS (Lloyds register of shipping), GL and DNV certified." "It is sold in 10 per indivisible quantity." "It is installed into a 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of 22mm metal control and signaling units combines simplicity of installation, modern standard and flush mounted design."
- Sustainable Offer Status:
- Green Premium product
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mechanical Durability:
- 10000000 cycles
- Product Or Component Type:
- head for non-illuminated push-button
- China Rohs Regulation:
- X
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Environmental Disclosure:
- ENVPEP1710010EN
- Standards:
- JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
- Head Type:
- standard
- Circularity Profile:
- ENVEOLI1710010EN
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 28 mm
- Device Short Name:
- ZB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- DNV || GL || UL Listed || CSA || BV || LROS (Lloyds register of shipping)
- Operator Profile:
- green flush, unmarked
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK03 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Width:
- 29 mm
- Sale Per Indivisible Quantity:
- 10
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
