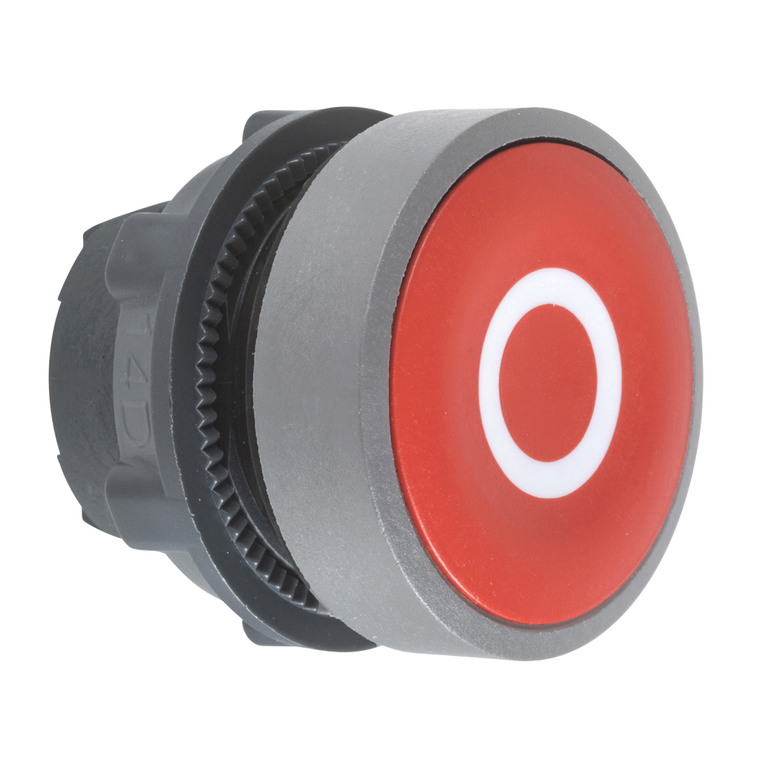

Schneider Electric ZB5AA432C0 Pushbutton
Schneider Electric
$12.75
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AA432C0 Pushbutton
This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mercury Free:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Standards:
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Product Certifications:
- DNV || CSA || UL Listed || GL || LROS (Lloyds register of shipping) || BV
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Cad Overall Width:
- 29 mm
- Overvoltage Category:
- class II IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 28 mm
- Operator Profile:
- red flush, O white)
- Product Or Component Type:
- head for non-illuminated push-button
- Net Weight:
- 0.018 kg
- Type Of Operator:
- spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Protective Treatment:
- TH
- Mounting Diameter:
- 22 mm
- Bezel Material:
- plastic colour plated grey
- Datasheet:
- View
