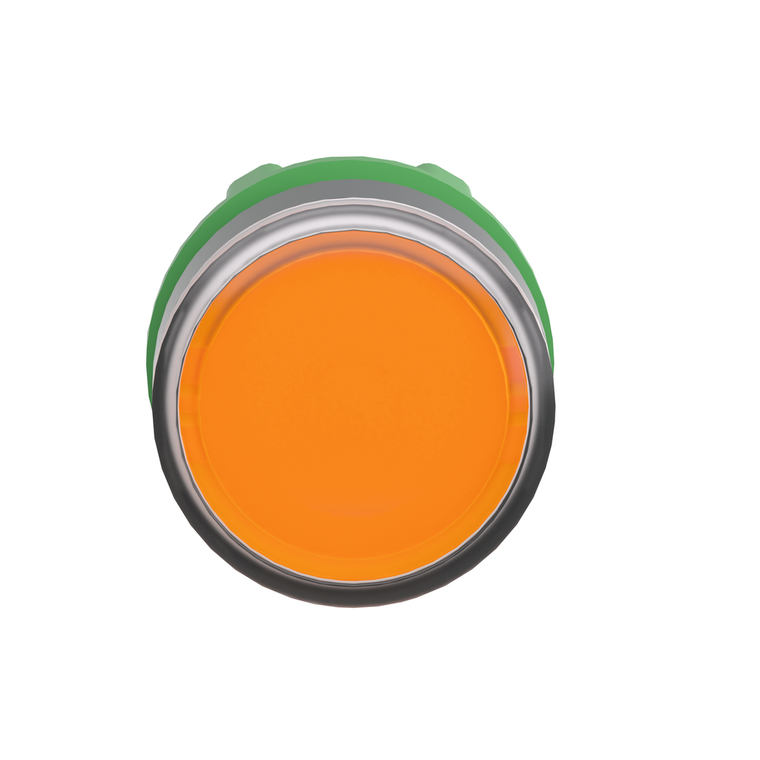

Schneider Electric ZB5AA58 Pushbutton Operator Head
This yellow flush button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Marking:
- unmarked
- Main Group:
- illum push-button
- Protective Treatment:
- TC
- Cap/Operator Or Lens Colour:
- orange
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XB5 || Harmony XALF
- Environmental Disclosure:
- ENVPEP1710010EN
- Standards:
- UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Presentation:
- basic element
- Operator Additional Information:
- for insertion of legend
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Short Name:
- ZB5
- Operator Profile:
- orange flush, unmarked
- Mounting Diameter:
- 22 mm
- Bezel Material:
- dark grey plastic
- Mechanical Durability:
- 10000000 cycles
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Net Weight:
- 0.018 kg
- Shape Of Signaling Unit Head:
- round
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cad Overall Width:
- 29 mm
- Product Or Component Type:
- head for illuminated push-button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- spring return
- Group Of Product:
- flush push with inser of legend
- Ik Degree Of Protection:
- IK03 EN 50102
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Depth:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL Listed
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Compatibility:
- universal LED
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Rohs Exemption Information:
- Yes
