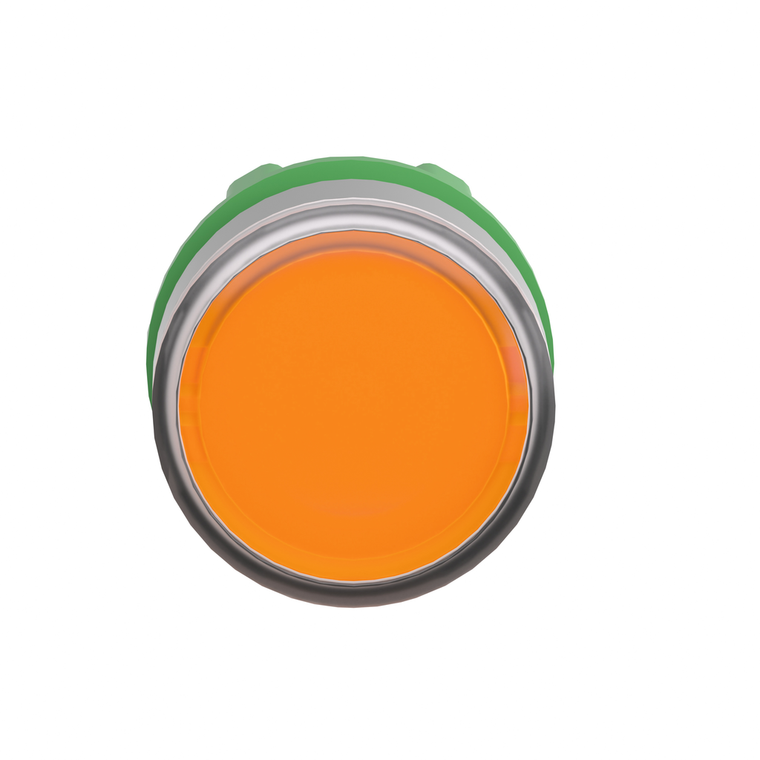

Schneider Electric ZB5AA58C0 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AA58C0 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AA58C0

UPC:

3606489762605

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Mechanical Durability:

10000000 cycles

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Group Of Product:

flush push with inser of legend

Protective Treatment:

TC

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Cad Overall Height:

29 mm

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sale Per Indivisible Quantity:

1

Marking:

unmarked

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

29 mm

Shape Of Signaling Unit Head:

round

Mounting Diameter:

22 mm

Cap/Operator Or Lens Colour:

orange

Mercury Free:

Yes

Device Presentation:

basic element

China Rohs Regulation:

X

Cad Overall Depth:

30 mm

Product Certifications:

DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL Listed

Bezel Material:

plastic colour plated grey

Ambient Air Temperature For Operation:

-40-70 °C

Main Group:

illum push-button

Ik Degree Of Protection:

IK03 EN 50102

Device Short Name:

ZB5

Operator Profile:

orange flush, unmarked

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Product Compatibility:

universal LED

Operator Additional Information:

for insertion of legend

Overvoltage Category:

class II IEC 60536

Head Type:

standard

Type Of Operator:

spring return

Range Of Product:

Harmony XB5 || Harmony XALF

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards:

UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Net Weight:

0.018 kg

Product Or Component Type:

head for illuminated push-button
