Schneider Electric ZB5AA66 Pushbutton Operator Head
Schneider Electric
$48.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AA66 Pushbutton Operator Head

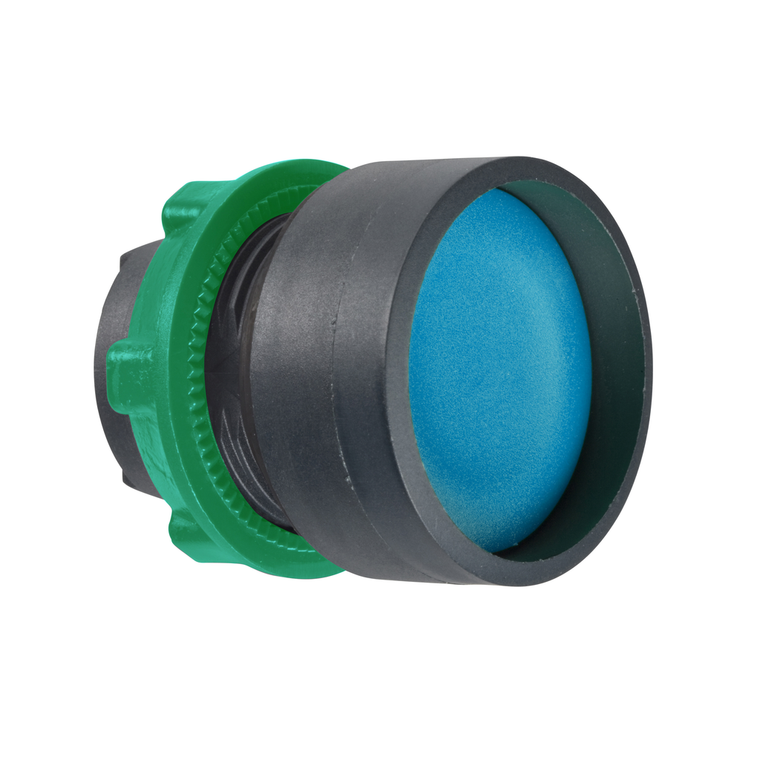

This blue button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Cad Overall Depth:
- 31 mm
- Type Of Operator:
- spring return
- Device Short Name:
- ZB5
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Certifications:
- UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Sustainable Offer Status:
- Green Premium product
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mounting Diameter:
- 22 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1710010EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.02 kg
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Operator Profile:
- blue recessed, unmarked
- Cad Overall Width:
- 29 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Bezel Material:
- dark grey plastic
- Device Presentation:
- basic element
- Operator Additional Information:
- high guard
- Mechanical Durability:
- 10000000 cycles
- Product Or Component Type:
- head for non-illuminated push-button
- Protective Treatment:
- TH
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1710010EN
- Datasheet:
- View
