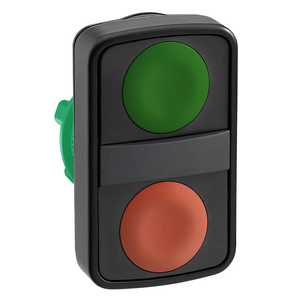

Schneider Electric ZB5AA7120 Plastic Double Headed Pushbuttons
Schneider Electric
$35.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AA7120 Plastic Double Headed Pushbuttons
This double head provides a versatile interface for controlling your machines, it has 1 white and 1 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operators Description:
- white unmarked - black unmarked
- Mechanical Durability:
- 1000000 cycles
- Product Or Component Type:
- head for double-headed push-button
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB5
- Cad Overall Width:
- 30 mm
- Rohs Exemption Information:
- Yes
- Product Certifications:
- BV || CSA || LROS (Lloyds register of shipping) || GL || DNV || UL Listed
- Operator Profile:
- 2 flush push-buttons
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- rectangular
- Ik Degree Of Protection:
- IK03 IEC 50102
- Electrical Shock Protection Class:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K IEC 60529
- Type Of Operator:
- spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 50 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Depth:
- 30 mm
- Device Short Name:
- ZB5
- Toxic Heavy Metal Free:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- black flush, unmarked || white flush, unmarked
- Net Weight:
- 0.023 kg
- Device Presentation:
- basic element
- Station Name:
- XALD 1 cut-out
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Colour Of Marking:
- white marking when green, red or black caps || black marking when white caps
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Protective Treatment:
- TH
- Mercury Free:
- Yes
- Datasheet:
- View
