Schneider Electric ZB5AA7121 Plastic Double Headed Pushbuttons

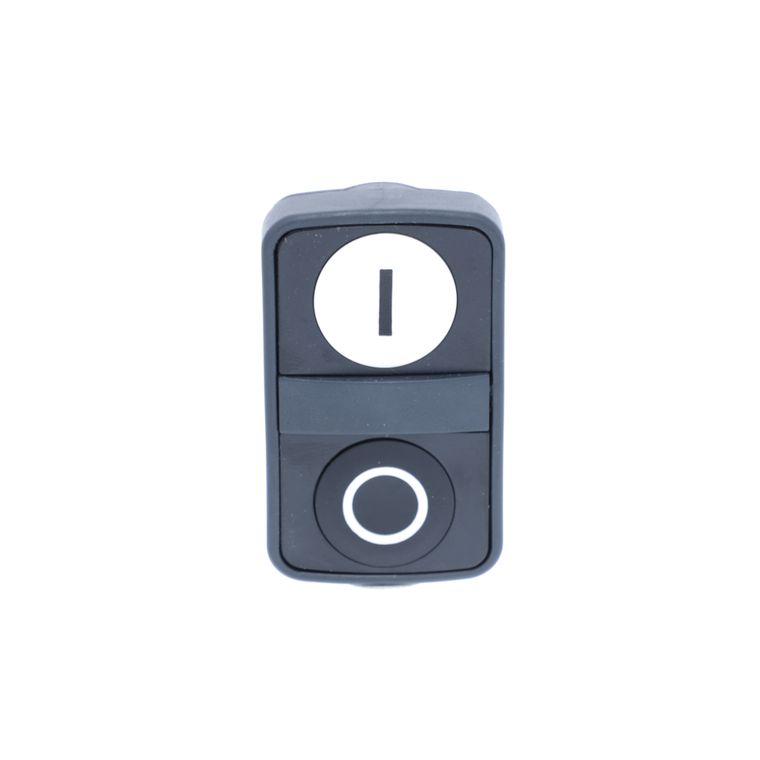

This Harmony XB5, double head has 1 white and 1 black button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for double-headed push-button
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK03 IEC 50102
- Operators Description:
- white ''I'' - black ''O''
- Type Of Operator:
- spring return
- Net Weight:
- 0.023 kg
- Head Type:
- standard
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Presentation:
- basic element
- Cad Overall Height:
- 50 mm
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL Listed
- Range Of Product:
- Harmony XB5
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 1000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
- Sale Per Indivisible Quantity:
- 1
- Rohs Exemption Information:
- Yes
- Station Name:
- XALD 1 cut-out
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Shock Protection Class:
- class II IEC 60536
- Bezel Material:
- dark grey plastic
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- rectangular
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K IEC 60529
- Cad Overall Width:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -25-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 30 mm
- Operator Profile:
- black flush, O white) || white flush, I black)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Operator Profile:
- 2 flush push-buttons
- Device Short Name:
- ZB5
