Schneider Electric ZB5AA7341 Plastic Double Headed Pushbuttons

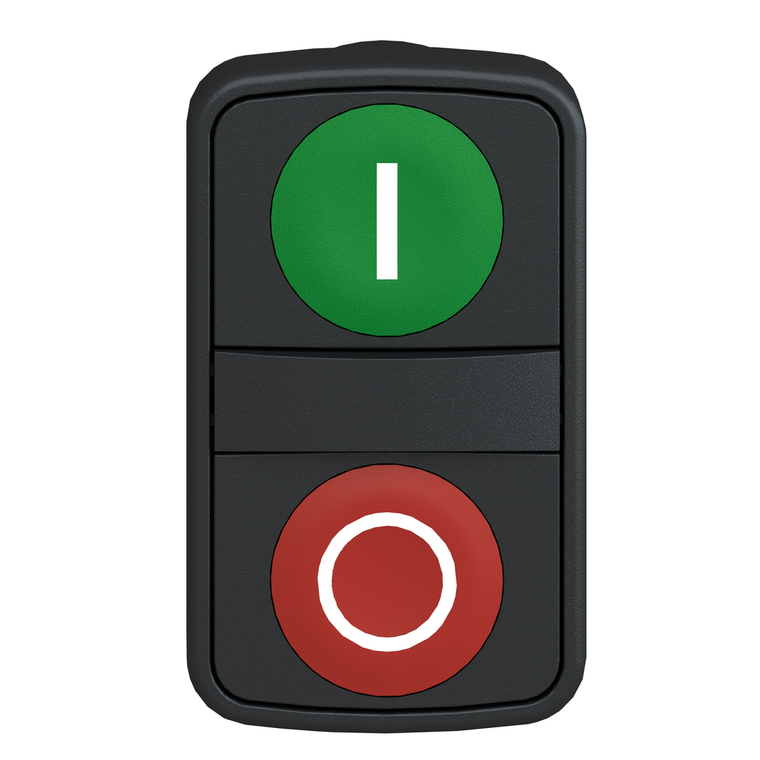

This double head provides a versatile interface for controlling your machines, it has 1 red and 1 green buttons. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors. It is also distinguishable by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ik Degree Of Protection:
- IK03 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- rectangular
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || UL Listed || DNV || BV || GL
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for double-headed push-button
- Cad Overall Depth:
- 30 mm
- Sustainable Offer Status:
- Green Premium product
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Circularity Profile:
- ENVEOLI1710010EN
- Net Weight:
- 0.023 kg
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 30 mm
- Mercury Free:
- Yes
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB5
- Electrical Shock Protection Class:
- class II IEC 60536
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1
- Mechanical Durability:
- 1000000 cycles
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Bezel Material:
- dark grey plastic
- Warranty:
- 18 months
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Station Name:
- XALD 1 cut-out
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Free Of Svhc:
- Yes
- Type Of Operator:
- spring return
- Cad Overall Height:
- 50 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Operators Description:
- green ''I'' - red ''O''
- Range Of Product:
- Harmony XB5
- Toxic Heavy Metal Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K IEC 60529
- Operator Profile:
- green flush, I white) || red flush, O white)
- Sale Per Indivisible Quantity:
- 1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -25-70 °C
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TH
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- 2 flush push-buttons
