Schneider Electric ZB5AA79 Plastic Double Headed Pushbuttons Withou
Schneider Electric
$33.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

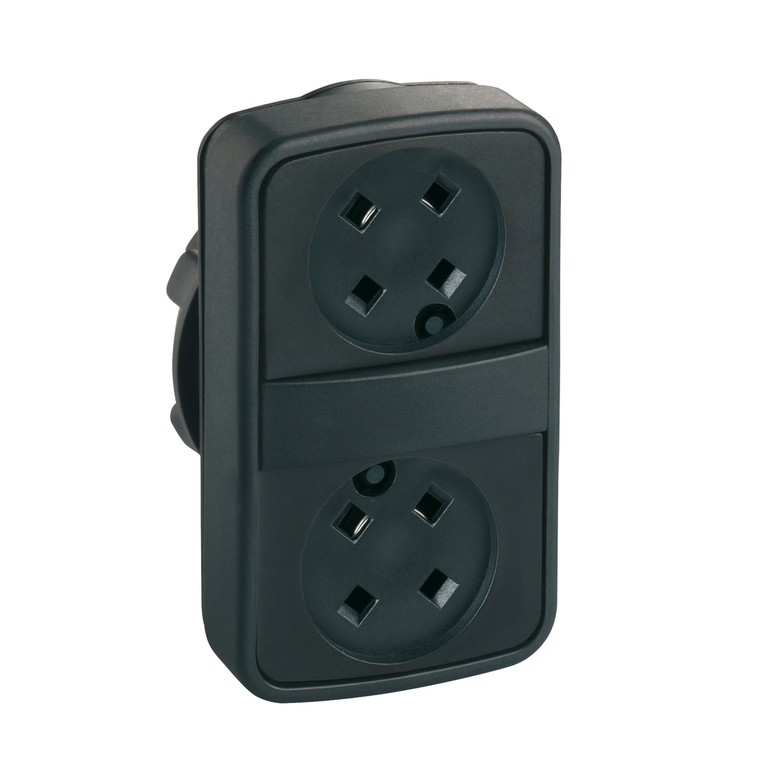

Schneider Electric ZB5AA79 Plastic Double Headed Pushbuttons Withou
This double head is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV || CSA
- Sale Per Indivisible Quantity:
- 1
- Operator Profile:
- 2 flush push-buttons
- Electrical Shock Protection Class:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K IEC 60529
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Warranty:
- 18 months
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 1000000 cycles
- Net Weight:
- 0.023 kg
- Head Type:
- standard
- Ik Degree Of Protection:
- IK03 IEC 50102
- Circularity Profile:
- ENVEOLI1710010EN
- Device Presentation:
- basic element
- Colour Of Marking:
- black marking when white caps || white marking when green, red or black caps
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- rectangular
- Type Of Operator:
- spring return
- Rohs Exemption Information:
- Yes
- Station Name:
- XALD 1 cut-out
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 30 mm
- Operators Description:
- black pushes without cap
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Operator Profile:
- without cap
- Cad Overall Depth:
- 30 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for double-headed push-button
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 50 mm
