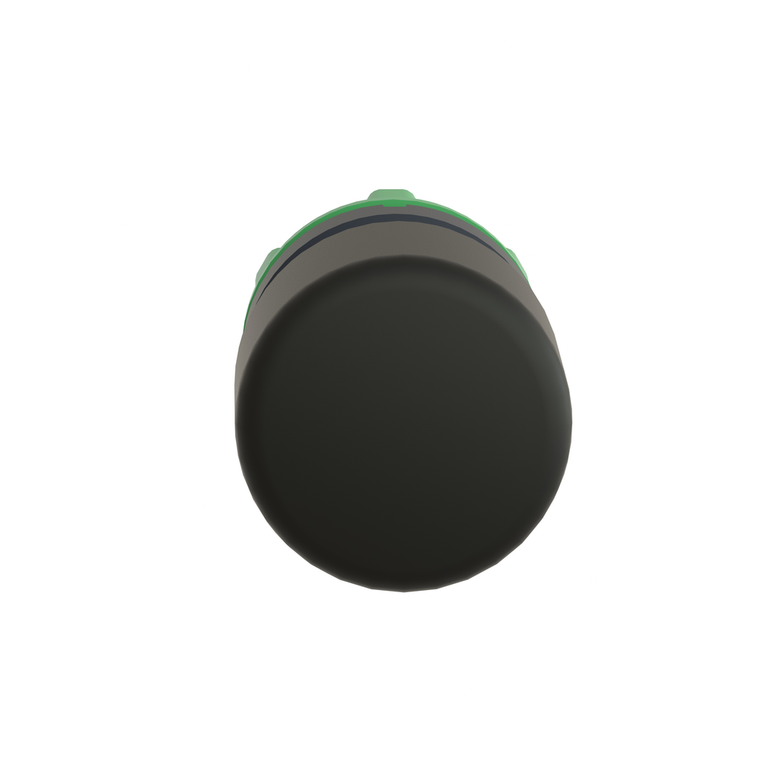

Schneider Electric ZB5AC24 Mushroomm Push But Head

Schneider Electric ZB5AC24 Mushroomm Push But Head

Schneider Electric
SKU:
ZB5AC24
|
UPC:
3389110904871
Availability:
Factory stock
$19.95
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This 30mm mushroom shaped black push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Type Of Operator:
spring return
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70 °C
Protective Treatment:
TH
Ambient Air Temperature For Storage:
-40-70 °C
Warranty:
18 months
Device Short Name:
ZB5
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Overvoltage Category:
class II IEC 60536
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Nema Degree Of Protection:
NEMA 4X
Electrical Composition Code:
C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Device Presentation:
basic element
Bezel Material:
dark grey plastic
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Rohs Exemption Information:
Yes
Shape Of Signaling Unit Head:
round
Product Certifications:
UL Listed || DNV || CSA || LROS (Lloyds register of shipping) || GL
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Station Name:
XALK 2...5 cut-outs
Product Or Component Type:
head for non-illuminated push-button
Range Of Product:
Harmony XB5
Mechanical Durability:
5000000 cycles
Sale Per Indivisible Quantity:
1
Ik Degree Of Protection:
IK03 IEC 50102
Standards:
UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
Mounting Diameter:
22 mm
Toxic Heavy Metal Free:
Yes
Compatibility Code:
ZB5
Ip Degree Of Protection:
IP66 IEC 60529 || IP69 || IP69K
Cad Overall Height:
30 mm
Cad Overall Depth:
52 mm
Net Weight:
0.027 kg
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Head Type:
standard
Environmental Disclosure:
ENVPEP1710010EN
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI1710010EN
Operator Profile:
black mushroom Ø 30 mm, unmarked
Reach Free Of Svhc:
Yes
Cad Overall Width:
30 mm
