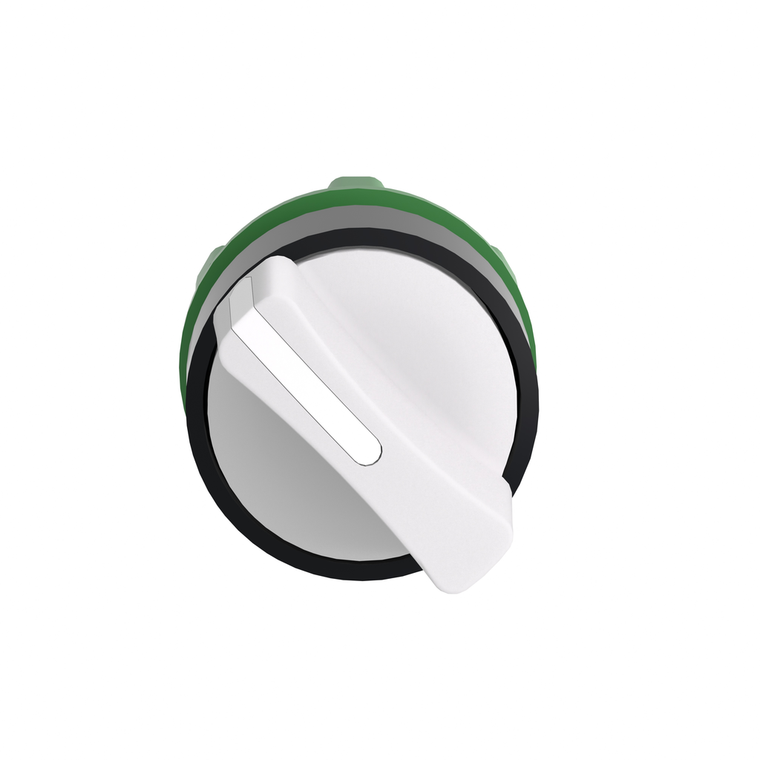

Schneider Electric ZB5AD201 Selector Operating Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AD201 Selector Operating Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AD201

UPC:

3389110904970

MPN:

Condition:

New

China Rohs Regulation:

X

Operator Position Information:

2 positions 90°

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Width:

29 mm

Ik Degree Of Protection:

IK06 IEC 50102

Bezel Material:

dark grey plastic

Protective Treatment:

TH

Net Weight:

0.017 kg

Type Of Operator:

stay put

Mechanical Durability:

1000000 cycles

Range Of Product:

Harmony XB5

Cad Overall Height:

29 mm

Device Presentation:

basic element

Ambient Air Temperature For Operation:

-40-70 °C

Overvoltage Category:

class II IEC 60536

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Rohs Exemption Information:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Environmental Disclosure:

ENVPEP1710010EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

CSA || GL || UL Listed || BV || DNV || LROS (Lloyds register of shipping)

Operator Profile:

white standard handle

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Device Short Name:

ZB5

Mounting Diameter:

22 mm

Shape Of Signaling Unit Head:

round

Ip Degree Of Protection:

IP67 IEC 60529 || IP69 IEC 60529 || IP69K

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Cad Overall Depth:

46 mm

Head Type:

standard

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards:

JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1

Product Or Component Type:

head for selector switch

Circularity Profile:

ENVEOLI1710010EN

Datasheet:

View
