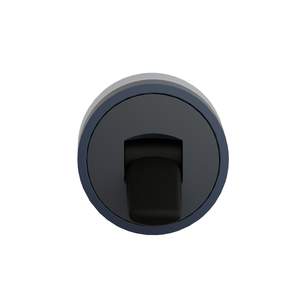

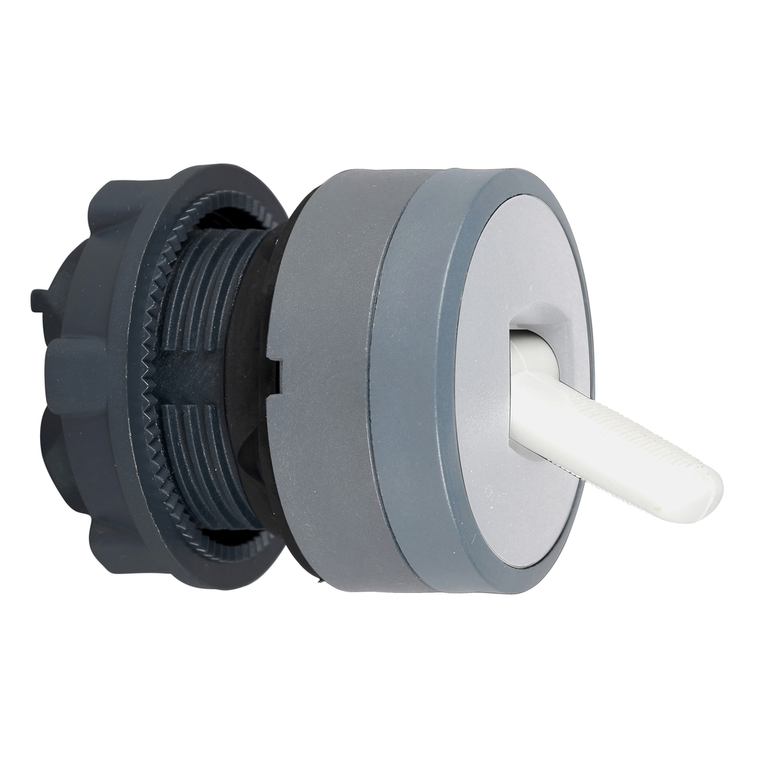

Schneider Electric ZB5AD2801C0 Toggle Operating Head
This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between the two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Device Presentation:
- basic element
- Net Weight:
- 0.023 kg
- Product Certifications:
- DNV || BV || GL || CSA || LROS (Lloyds register of shipping) || UL Listed
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Electrical Composition Code:
- C11 3 single front mounting || C12 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C13 6 single and double front mounting
- Operator Position Information:
- 2 positions 90°
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529
- Product Or Component Type:
- head for selector switch
- Type Of Operator:
- stay put
- Standards:
- CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Additional Information:
- white lever
- Operator Profile:
- black toggle switch
- Cad Overall Depth:
- 45 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mechanical Durability:
- 500000 cycles
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Mounting Diameter:
- 22 mm
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Height:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- plastic colour plated grey
- Protective Treatment:
- TH
- Head Type:
- standard
- China Rohs Regulation:
- X
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 29 mm
- Ik Degree Of Protection:
- IK06
- Device Short Name:
- ZB5
