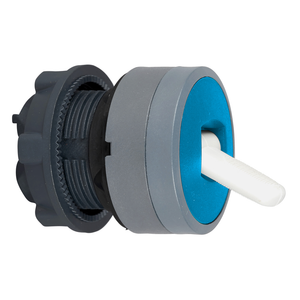

Schneider Electric ZB5AD28C0 Toggle Operating Head
This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between the two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Electrical Composition Code:
- C11 3 single front mounting || C12 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C13 6 single and double front mounting
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mechanical Durability:
- 500000 cycles
- Cad Overall Depth:
- 45 mm
- Type Of Operator:
- stay put
- Range Of Product:
- Harmony XB5
- Standards:
- IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- black toggle switch
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 29 mm
- Operator Position Information:
- 2 positions 90°
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK06
- Sale Per Indivisible Quantity:
- 1
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Bezel Material:
- plastic colour plated grey
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Head Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mounting Diameter:
- 22 mm
- Net Weight:
- 0.023 kg
- Product Certifications:
- DNV || GL || UL Listed || BV || CSA || LROS (Lloyds register of shipping)
- Shape Of Signaling Unit Head:
- round
- Operator Additional Information:
- black lever
- Overvoltage Category:
- class II IEC 60536
- Product Or Component Type:
- head for selector switch
