Schneider Electric ZB5AD303 Selector Operating Head

Schneider Electric ZB5AD303 Selector Operating Head

Schneider Electric
SKU:
ZB5AD303
|
UPC:
3.38911E+12
Availability:
Contact us to confirm availability and lead times.
$36.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

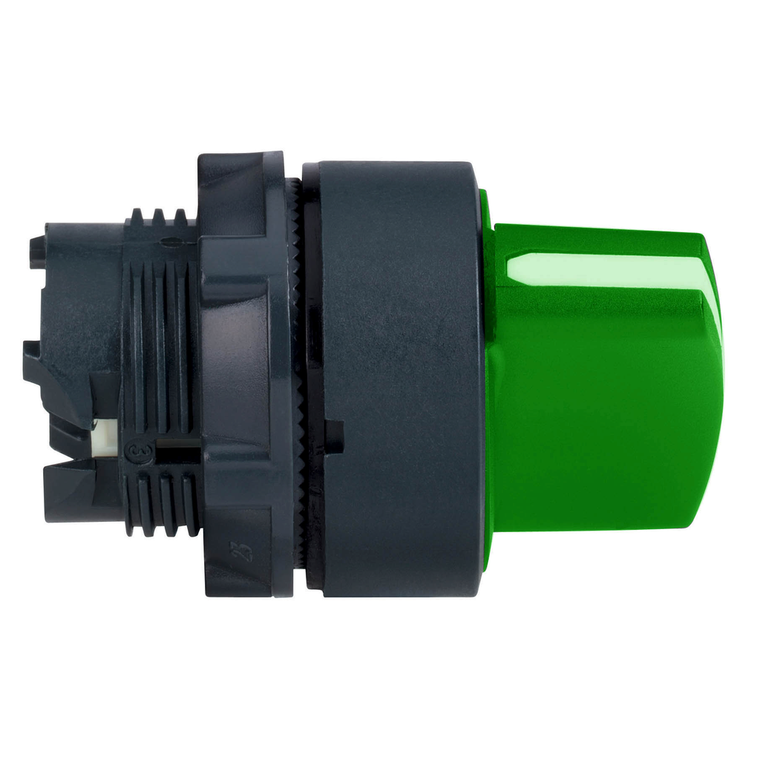

This switch head with green standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
Additional Information
Device Presentation:
basic element
Shape Of Signaling Unit Head:
round
Cad Overall Width:
29 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Bezel Material:
dark grey plastic
Head Type:
standard
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Depth:
46 mm
Range Of Product:
Harmony XB5
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
Ik Degree Of Protection:
IK06 IEC 50102
Sale Per Indivisible Quantity:
1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Operator Position Information:
3 positions +/- 45°
Warranty:
18 months
Rohs Exemption Information:
Yes
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Product Or Component Type:
head for selector switch
Ambient Air Temperature For Operation:
-40-70 °C
Protective Treatment:
TH
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Type Of Operator:
stay put
Mounting Diameter:
22 mm
Net Weight:
0.017 kg
Cad Overall Height:
29 mm
Overvoltage Category:
class II IEC 60536
Circularity Profile:
ENVEOLI1710010EN
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Short Name:
ZB5
Operator Profile:
green standard handle
Reach Free Of Svhc:
Yes
Product Certifications:
CSA || BV || DNV || LROS (Lloyds register of shipping) || GL || UL Listed
Environmental Disclosure:
ENVPEP1710010EN
Ambient Air Temperature For Storage:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
1000000 cycles
China Rohs Regulation:
X
Datasheet:
View
