Schneider Electric ZB5AD39C0 Pushbutton Operator Head
Schneider Electric
$23.84
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AD39C0 Pushbutton Operator Head

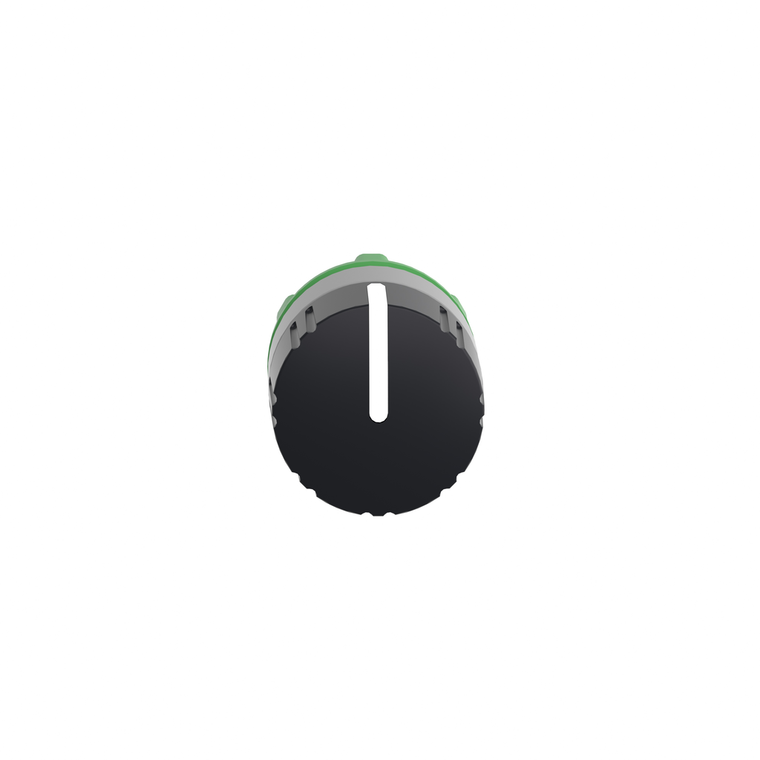

This switch head with knurled knob provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for selector switch
- Ik Degree Of Protection:
- IK06 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- stay put
- Sale Per Indivisible Quantity:
- 1
- Mechanical Durability:
- 1000000 cycles
- Mounting Diameter:
- 22 mm
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Bezel Material:
- plastic colour plated grey
- Net Weight:
- 0.02 kg
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP67 IEC 60529
- Operator Position Information:
- 2 positions 90°
- Mercury Free:
- Yes
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || C15 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 46 mm
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Product Certifications:
- UL Listed || GL || CSA || BV || DNV || LROS (Lloyds register of shipping)
- Device Short Name:
- ZB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- black knurled knob
- Overvoltage Category:
- class II IEC 60536
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
