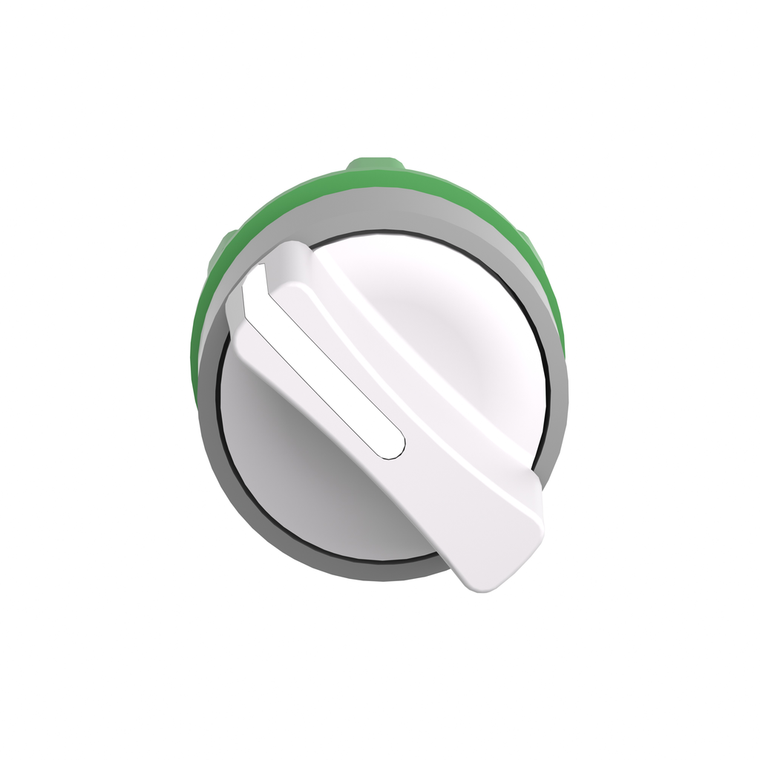

Schneider Electric ZB5AD401C0 Selector Operating Head

Schneider Electric ZB5AD401C0 Selector Operating Head

Schneider Electric
SKU:
ZB5AD401C0
|
UPC:
3606489763343
Availability:
Contact us to confirm availability and lead times.
$26.98
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
Additional Information
Overvoltage Category:
class II IEC 60536
Mechanical Durability:
1000000 cycles
Reach Free Of Svhc:
Yes
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Type Of Operator:
right to left spring return
Range Of Product:
Harmony XB5
Device Short Name:
ZB5
Ik Degree Of Protection:
IK06 IEC 50102
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Protective Treatment:
TH
Operator Position Information:
2 positions 90°
Ip Degree Of Protection:
IP67 IEC 60529
Operator Profile:
white standard handle
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation:
basic element
Mounting Diameter:
22 mm
Ambient Air Temperature For Operation:
-40-70 °C
Sale Per Indivisible Quantity:
1
Cad Overall Depth:
46 mm
Toxic Heavy Metal Free:
Yes
Cad Overall Width:
29 mm
Net Weight:
0.02 kg
Product Certifications:
CSA || LROS (Lloyds register of shipping) || GL || DNV || UL Listed || BV
Cad Overall Height:
29 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Bezel Material:
plastic colour plated grey
Head Type:
standard
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shape Of Signaling Unit Head:
round
Mercury Free:
Yes
Product Or Component Type:
head for selector switch
Standards:
JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
