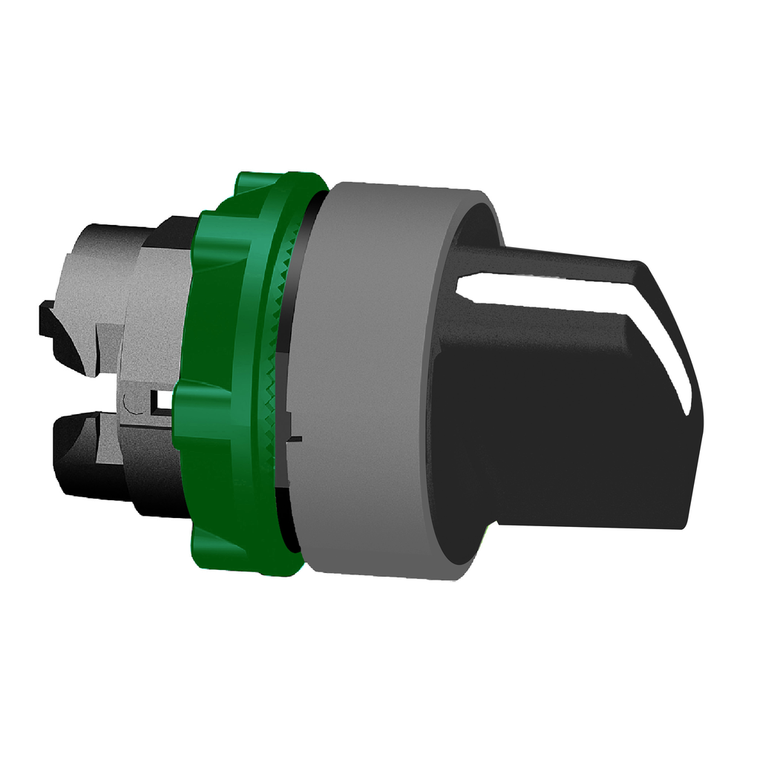

Schneider Electric ZB5AD501C0 Selector Operating Head
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 1000000 cycles
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Cad Overall Width:
- 29 mm
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK06 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || DNV || UL Listed || GL || CSA
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for selector switch
- Type Of Operator:
- to centre spring return
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Depth:
- 46 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Cad Overall Height:
- 29 mm
- Range Of Product:
- Harmony XB5
- Sale Per Indivisible Quantity:
- 1
- Operator Position Information:
- 3 positions +/- 45°
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.017 kg
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Operator Profile:
- white standard handle
- Bezel Material:
- plastic colour plated grey
- Ip Degree Of Protection:
- IP67 IEC 60529
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
