Schneider Electric ZB5AD5TQ Selector Operating Head Pack of 100
Schneider Electric
$2,940.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

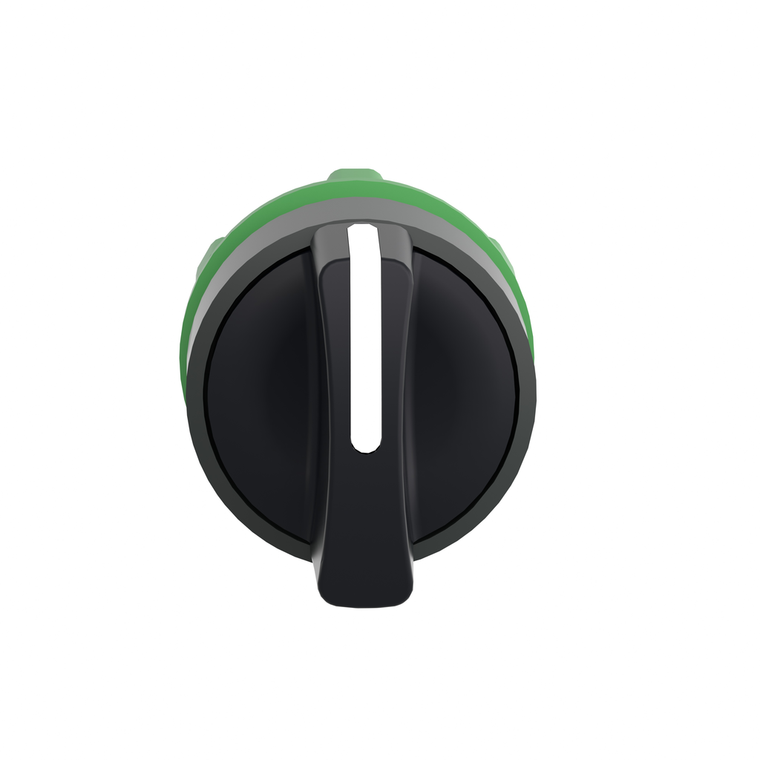

Schneider Electric ZB5AD5TQ Selector Operating Head Pack of 100
This switch head with standard handle provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes It is sold by 100 units High performance International standards & certifications ( Marine certification, IP67 IP69 IP69K, Type 13 and 4X)
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Station Name:
- XALD 1...5 cut-outs
- Environmental Disclosure:
- ENVPEP1710010EN
- China Rohs Regulation:
- X
- Product Certifications:
- BV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || DNV
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Depth:
- 46 mm
- Product Or Component Type:
- head for selector switch
- Operator Profile:
- black standard handle
- Ik Degree Of Protection:
- IK06 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
- Type Of Operator:
- to centre spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Position Information:
- 3 positions +/- 45°
- Bezel Material:
- dark grey plastic
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Protective Treatment:
- TH
- Mechanical Durability:
- 1000000 cycles
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Sale Per Indivisible Quantity:
- 10
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Free Of Svhc:
- Yes
- Mounting Diameter:
- 22 mm
- Range Of Product:
- Harmony XB5
- Circularity Profile:
- ENVEOLI1710010EN
