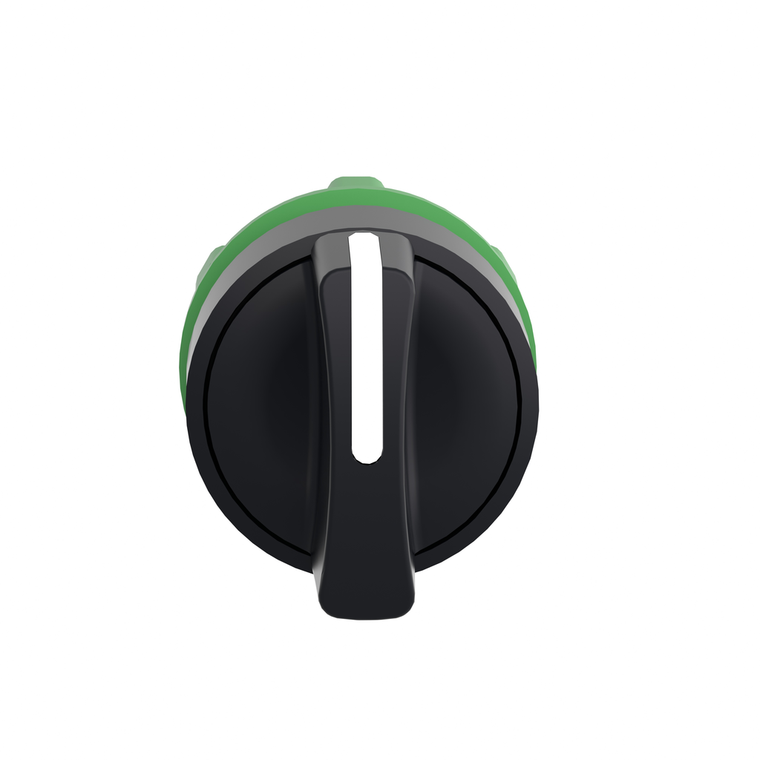

Schneider Electric ZB5AD7 Selector Operating Head
Schneider Electric
$21.61
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Head Type:
- standard
- Range Of Product:
- Harmony XB5
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Position Information:
- 3 positions +/- 45°
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- China Rohs Regulation:
- X
- Cad Overall Width:
- 29 mm
- Bezel Material:
- dark grey plastic
- Toxic Heavy Metal Free:
- Yes
- Net Weight:
- 0.017 kg
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Certifications:
- GL || BV || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed
- Ik Degree Of Protection:
- IK06 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Protective Treatment:
- TH
- Product Or Component Type:
- head for selector switch
- Cad Overall Depth:
- 46 mm
- Device Presentation:
- basic element
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Type Of Operator:
- left to centre spring return
- Cad Overall Height:
- 29 mm
- Operator Profile:
- black standard handle
- Datasheet:
- View
