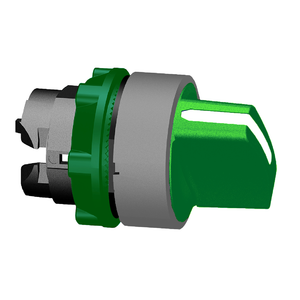

Schneider Electric ZB5AD703C0 Selector Operating Head
Schneider Electric
$22.91
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AD703C0 Selector Operating Head
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Device Short Name:
- ZB5
- Device Presentation:
- basic element
- Type Of Operator:
- left to centre spring return
- Cad Overall Depth:
- 46 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || BV || UL Listed || DNV || GL
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB5
- Reach Free Of Svhc:
- Yes
- Head Type:
- standard
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mounting Diameter:
- 22 mm
- Sale Per Indivisible Quantity:
- 1
- Operator Position Information:
- 3 positions +/- 45°
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK06 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- plastic colour plated grey
- Net Weight:
- 0.017 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP67 IEC 60529
- Cad Overall Height:
- 29 mm
- Cad Overall Width:
- 29 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for selector switch
- Operator Profile:
- green standard handle
- Datasheet:
- View
