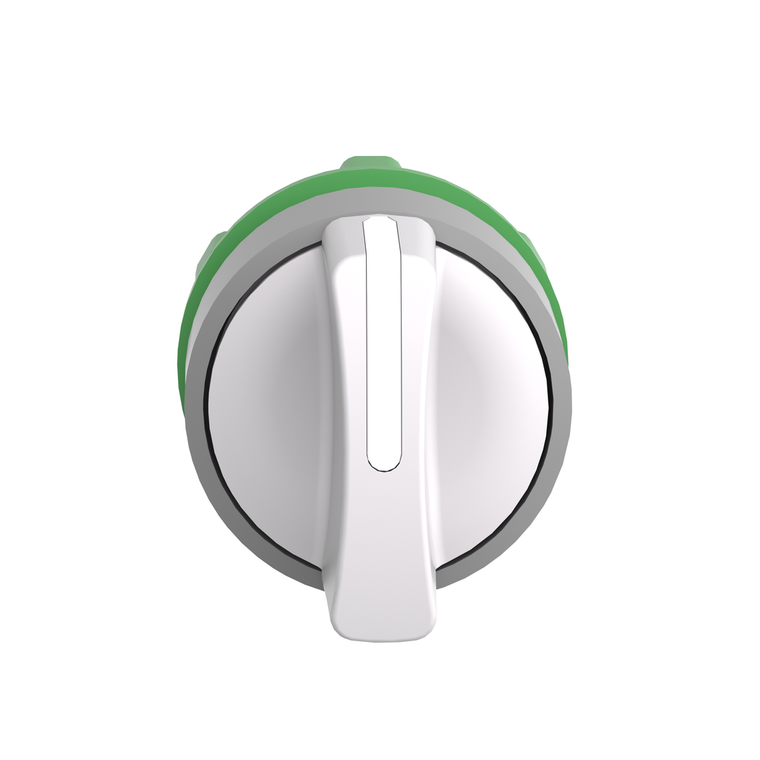

Schneider Electric ZB5AD801C0 Selector Operating Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AD801C0 Selector Operating Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AD801C0

UPC:

3606489763787

MPN:

Condition:

New

Mounting Diameter:

22 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ip Degree Of Protection:

IP67 IEC 60529

Ik Degree Of Protection:

IK06 IEC 50102

Type Of Operator:

right to centre spring return

Cad Overall Height:

29 mm

Ambient Air Temperature For Operation:

-40-70 °C

Rohs Exemption Information:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Operator Profile:

white standard handle

Product Or Component Type:

head for selector switch

Range Of Product:

Harmony XB5

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Operator Position Information:

3 positions +/- 45°

Overvoltage Category:

class II IEC 60536

Sale Per Indivisible Quantity:

1

Shape Of Signaling Unit Head:

round

Head Type:

standard

Cad Overall Width:

29 mm

Device Presentation:

basic element

China Rohs Regulation:

X

Mercury Free:

Yes

Bezel Material:

plastic colour plated grey

Cad Overall Depth:

46 mm

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3

Protective Treatment:

TH

Product Certifications:

CSA || DNV || UL Listed || GL || BV || LROS (Lloyds register of shipping)

Mechanical Durability:

1000000 cycles

Toxic Heavy Metal Free:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

0.017 kg

Device Short Name:

ZB5

Datasheet:

View
