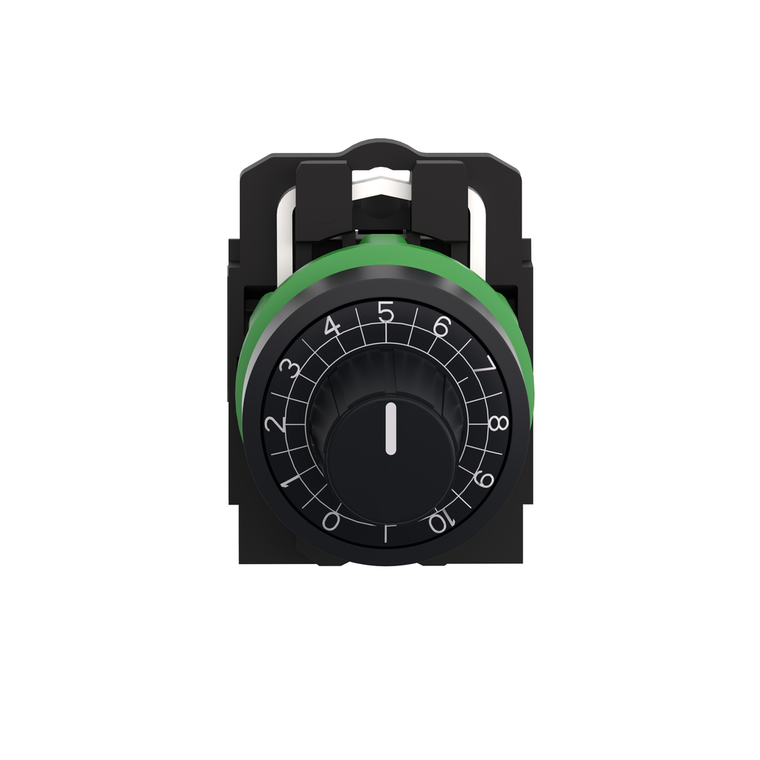

Schneider Electric ZB5AD922 Potentiometer Op. Head

Schneider Electric ZB5AD922 Potentiometer Op. Head

Schneider Electric
SKU:
ZB5AD922
|
UPC:
3389110905380
Availability:
Contact us to confirm availability and lead times.
$142.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5,head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Electrical Shock Protection Class:
class II IEC 60536
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection:
IP66 IEC 60529
Standards:
IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
China Rohs Regulation:
X
Device Short Name:
ZB5
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Bezel Material:
dark grey plastic
Product Or Component Type:
head + mounting base for potentiometer
Shape Of Signaling Unit Head:
round
Device Presentation:
basic element
Ik Degree Of Protection:
IK03 IEC 50102
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
Product Certifications:
CSA || UL Listed || BV || DNV || LROS (Lloyds register of shipping) || GL
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1710010EN
Head Type:
standard
Environmental Disclosure:
ENVPEP1710010EN
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-40-70 °C
Operator Profile:
knurled knob, with white)
Net Weight:
0.032 kg
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Product Compatibility:
for use with Ø 6.35 mm shaft
Protective Treatment:
TH
Mercury Free:
Yes
Range Of Product:
Harmony XB5
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Sale Per Indivisible Quantity:
1
Mounting Diameter:
22 mm
Datasheet:
View
