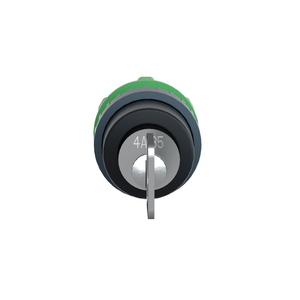

Schneider Electric ZB5AFDA Key Push And Turn Op. Hea
SKU:
ZB5AFDA
UPC:
3389110905403
MPN:
Condition:
New
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name:
ZB5
Circularity Profile:
ENVEOLI1710010EN
Warranty:
18 months
Protective Treatment:
TH
Cad Overall Depth:
62 mm
Locking Position:
both positions
Net Weight:
0.05 kg
Ambient Air Temperature For Operation:
-25-70 °C
Standards:
EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Head Type:
standard
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class:
class II IEC 60536
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Electrical Composition Code:
C12 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C13 6 single and double front mounting
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Product Certifications:
CSA || DNV || GL || BV || LROS (Lloyds register of shipping) || UL Listed
Key Withdrawal Position:
both positions
Cad Overall Width:
29 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Type Of Keylock:
Dom 4A185
Mechanical Durability:
500000 cycles
Operator Profile:
key switch
Shape Of Signaling Unit Head:
round
Mounting Diameter:
22 mm
Type Of Operator:
turn to release
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Ambient Air Temperature For Storage:
-40-70 °C
Ik Degree Of Protection:
IK03 IEC 50102
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
