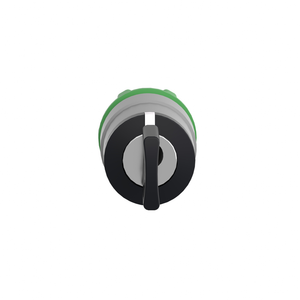

Schneider Electric ZB5AG05 Key Selector Operating Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AG05 Key Selector Operating Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AG05

UPC:

3389110223514

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK06 IEC 50102

Environmental Disclosure:

ENVPEP1710010EN

Overvoltage Category:

class II IEC 60536

Cad Overall Height:

29 mm

Key Withdrawal Position:

left and center

Warranty:

18 months

Cad Overall Depth:

72 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mounting Diameter:

22 mm

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Device Presentation:

basic element

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Operation:

-40-70 °C

Standards:

UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1

Bezel Material:

dark grey plastic

Mechanical Durability:

1000000 cycles

Protective Treatment:

TH

Circularity Profile:

ENVEOLI1710010EN

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Type Of Keylock:

key 455

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Operator Profile:

black key switch

Range Of Product:

Harmony XB5

Mercury Free:

Yes

Product Or Component Type:

head for key selector switch

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Head Type:

standard

Shape Of Signaling Unit Head:

round

Cad Overall Width:

29 mm

Device Short Name:

ZB5

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Product Certifications:

BV || GL || CSA || LROS (Lloyds register of shipping) || UL Listed || DNV

Operator Position Information:

3 positions +/- 45°

Type Of Operator:

right to centre spring return

Datasheet:

View
