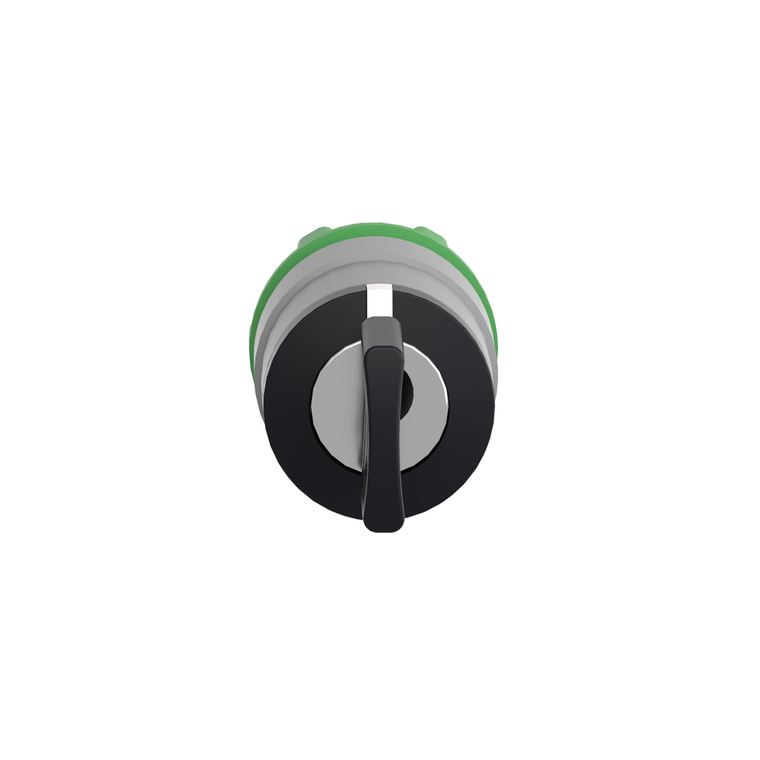

Schneider Electric ZB5AG05C0 Key Selector Operating Head
Schneider Electric
$40.80
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66, making it ideal for operation in harsh environments.
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic element
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Or Component Type:
- head for key selector switch
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK06 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- standard
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 72 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Keylock:
- key 455
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- BV || GL || CSA || LROS (Lloyds register of shipping) || UL Listed || DNV
- Mounting Diameter:
- 22 mm
- Operator Profile:
- black key switch
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Ambient Air Temperature For Operation:
- -40-70 °C
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Key Withdrawal Position:
- left and center
- Operator Position Information:
- 3 positions +/- 45°
- Type Of Operator:
- right to centre spring return
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Mechanical Durability:
- 1000000 cycles
- Mercury Free:
- Yes
- Bezel Material:
- plastic colour plated grey
- Datasheet:
- View
