Schneider Electric ZB5AG0820 Key Selector Operating He

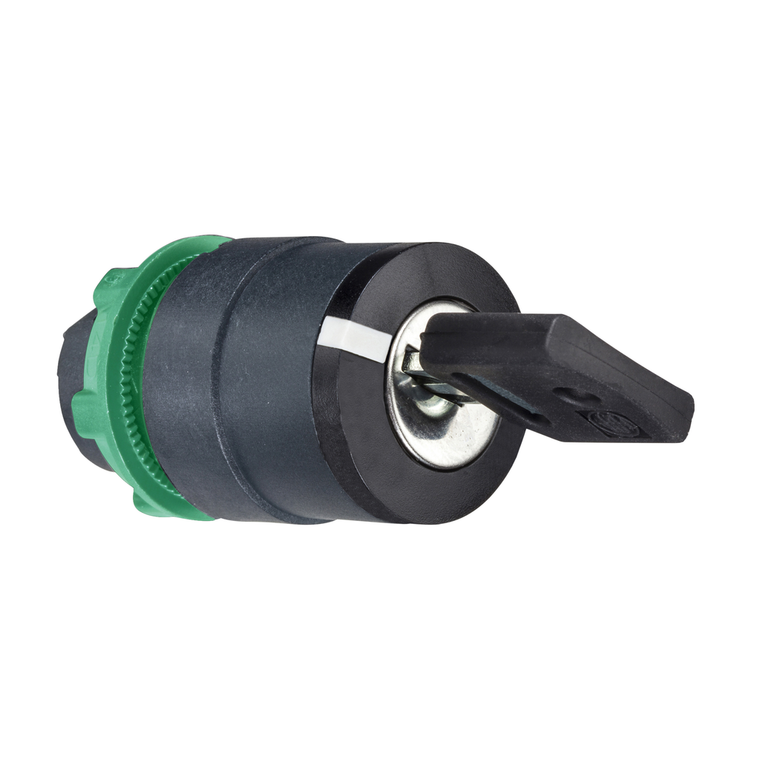

This head with key (key no.3131A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Bezel Material:
- dark grey plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mechanical Durability:
- 1000000 cycles
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 29 mm
- Product Certifications:
- GL || LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV
- Type Of Operator:
- right to centre spring return
- Operator Profile:
- black key switch
- Cad Overall Height:
- 29 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for key selector switch
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.057 kg
- Sale Per Indivisible Quantity:
- 1
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
- Key Withdrawal Position:
- left
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Type Of Keylock:
- key 3131A
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Ik Degree Of Protection:
- IK06 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Depth:
- 72 mm
- China Rohs Regulation:
- X
- Operator Position Information:
- 3 positions +/- 45°
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Overvoltage Category:
- class II IEC 60536
- Head Type:
- standard
- Warranty:
- 18 months
