Schneider Electric ZB5AG0D Key Selector Operating He

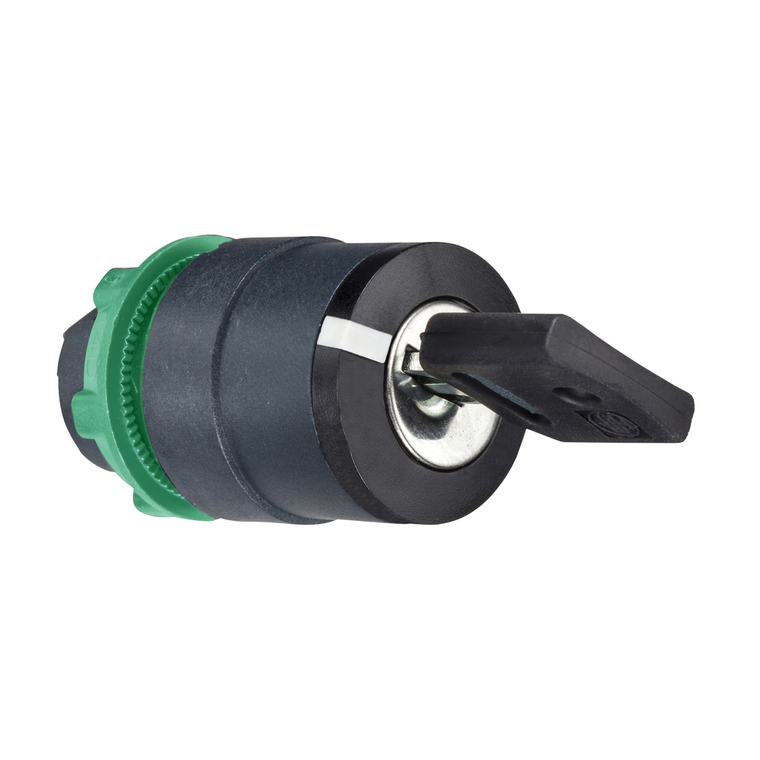

This head with key (key no.8D1) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Cad Overall Height:
- 29 mm
- Protective Treatment:
- TH
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Device Short Name:
- ZB5
- Key Withdrawal Position:
- in any position
- Cad Overall Width:
- 29 mm
- Type Of Keylock:
- Dom 8D1
- Net Weight:
- 0.057 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Rohs Exemption Information:
- Yes
- Head Type:
- standard
- Standards:
- UL 508 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1710010EN
- Product Or Component Type:
- head for key selector switch
- Product Certifications:
- UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)
- Cad Overall Depth:
- 72 mm
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- black key switch
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- stay put
- Device Presentation:
- basic element
- Operator Position Information:
- 3 positions +/- 45°
- Range Of Product:
- Harmony XB5
- Environmental Disclosure:
- ENVPEP1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
