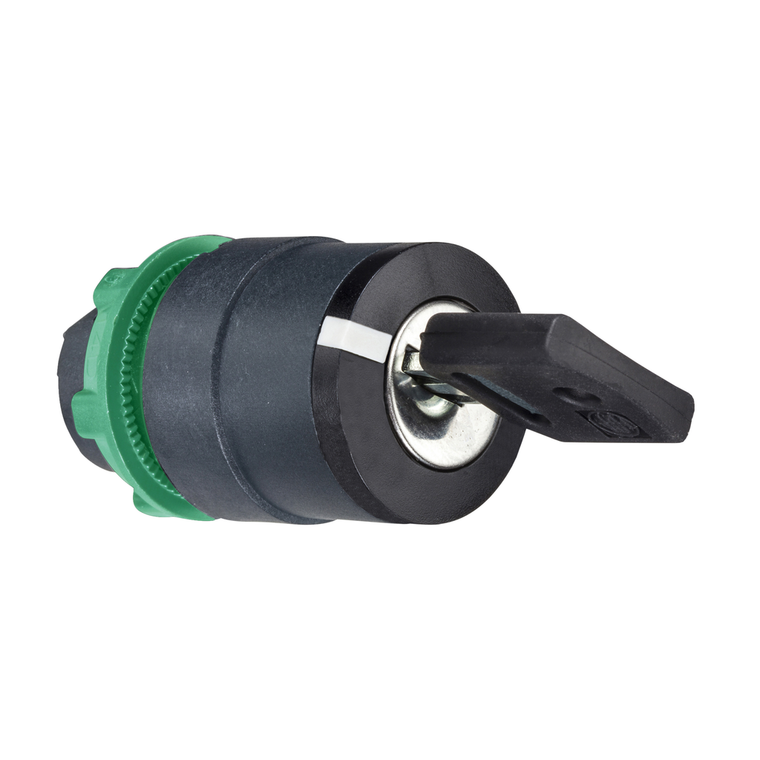

Schneider Electric ZB5AG410 Key Selector Operating He
This head with key (key no.458A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.057 kg
- Type Of Operator:
- stay put
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Height:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Device Presentation:
- basic element
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1710010EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards:
- CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Protective Treatment:
- TH
- Mechanical Durability:
- 1000000 cycles
- Bezel Material:
- dark grey plastic
- Operator Profile:
- black key switch
- Mounting Diameter:
- 22 mm
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- Warranty:
- 18 months
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Overvoltage Category:
- class II IEC 60536
- Operator Position Information:
- 2 positions 90°
- Sale Per Indivisible Quantity:
- 1
- Range Of Product:
- Harmony XB5
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK06 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Shape Of Signaling Unit Head:
- round
- Cad Overall Width:
- 29 mm
- Product Certifications:
- UL Listed || DNV || GL || LROS (Lloyds register of shipping) || CSA || BV
- Cad Overall Depth:
- 72 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Keylock:
- key 458A
- Key Withdrawal Position:
- in any position
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for key selector switch
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1710010EN
- Datasheet:
- View
