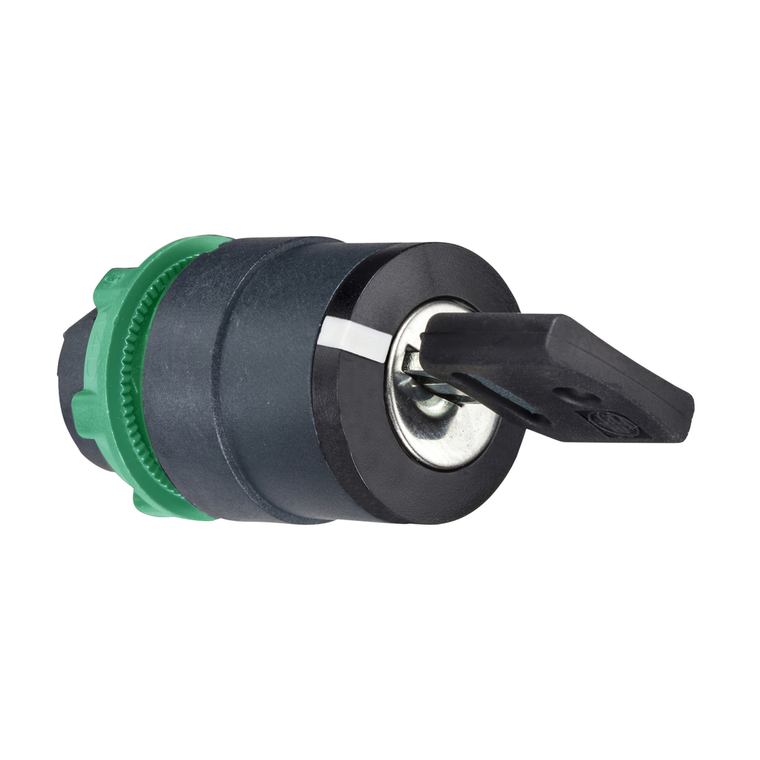

Schneider Electric ZB5AG420 Key Selector Operating He

Schneider Electric ZB5AG420 Key Selector Operating He

Schneider Electric
SKU:
ZB5AG420
|
UPC:
3389110135367
$135.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This head with key (key no.3131A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Type Of Operator:
stay put
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Operation:
-40-70 °C
Cad Overall Height:
29 mm
Operator Profile:
black key switch
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Overvoltage Category:
class II IEC 60536
Warranty:
18 months
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Of Product:
Harmony XB5
Ambient Air Temperature For Storage:
-40-70 °C
Sale Per Indivisible Quantity:
1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Protective Treatment:
TH
Type Of Keylock:
key 3131A
Device Short Name:
ZB5
Sustainable Offer Status:
Green Premium product
Bezel Material:
dark grey plastic
Device Presentation:
basic element
Environmental Disclosure:
ENVPEP1710010EN
Mounting Diameter:
22 mm
Key Withdrawal Position:
in any position
Product Certifications:
GL || LROS (Lloyds register of shipping) || BV || DNV || UL Listed || CSA
Head Type:
standard
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mechanical Durability:
1000000 cycles
Rohs Exemption Information:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Composition Code:
C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
Cad Overall Depth:
72 mm
Mercury Free:
Yes
China Rohs Regulation:
X
Cad Overall Width:
29 mm
Circularity Profile:
ENVEOLI1710010EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shape Of Signaling Unit Head:
round
Operator Position Information:
2 positions 90°
Standards:
EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
Product Or Component Type:
head for key selector switch
Net Weight:
0.057 kg
Ik Degree Of Protection:
IK06 IEC 50102
Datasheet:
View
