Schneider Electric ZB5AG612 Key Selector Operating He

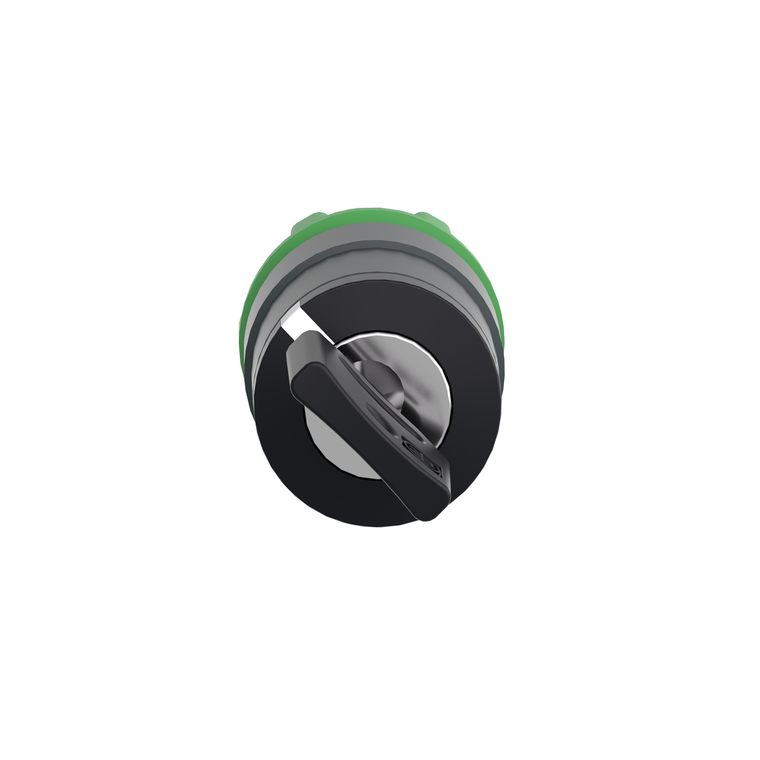

This head with key (key no.421E) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for key selector switch
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Keylock:
- key 421E
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Device Short Name:
- ZB5
- Bezel Material:
- dark grey plastic
- Circularity Profile:
- ENVEOLI1710010EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Mechanical Durability:
- 1000000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Protective Treatment:
- TH
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Operator Position Information:
- 2 positions 90°
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Key Withdrawal Position:
- left
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- right to left spring return
- Range Of Product:
- Harmony XB5
- Operator Profile:
- black key switch
- Warranty:
- 18 months
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Net Weight:
- 0.061 kg
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mounting Diameter:
- 22 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 72 mm
- Mercury Free:
- Yes
- Product Certifications:
- DNV || GL || CSA || BV || UL Listed || LROS (Lloyds register of shipping)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
