Schneider Electric ZB5AG710 Key Selector Operating He

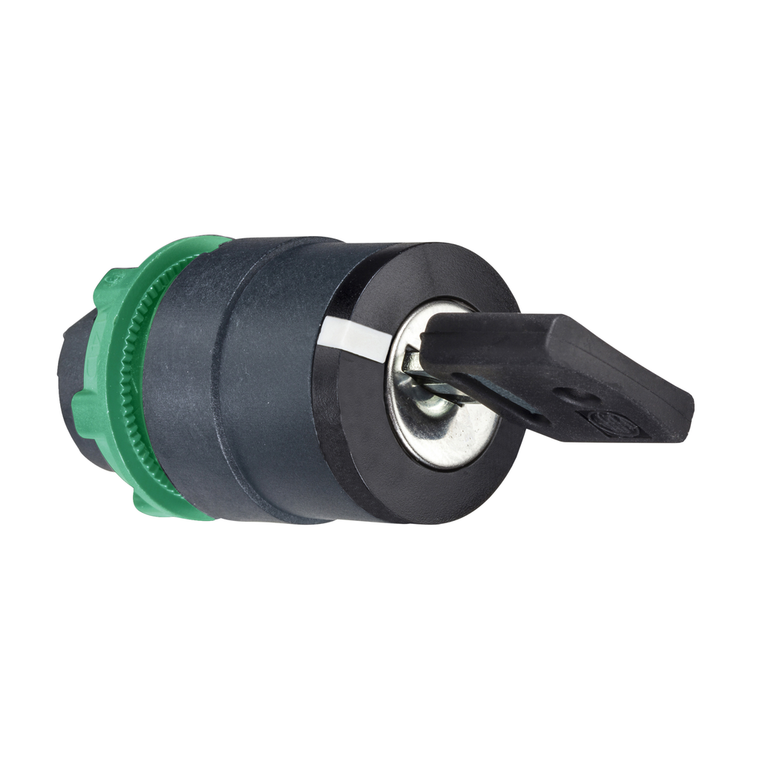

This head with key (key no.458A) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Profile:
- black key switch
- Type Of Operator:
- to centre spring return
- Mechanical Durability:
- 1000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic element
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK06 IEC 50102
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Bezel Material:
- dark grey plastic
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for key selector switch
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB5
- Product Certifications:
- UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || GL || BV
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Key Withdrawal Position:
- center
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width:
- 29 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 72 mm
- Protective Treatment:
- TH
- Net Weight:
- 0.057 kg
- China Rohs Regulation:
- X
- Type Of Keylock:
- key 458A
- Operator Position Information:
- 3 positions +/- 45°
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1710010EN
- Mounting Diameter:
- 22 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Head Type:
- standard
- Cad Overall Height:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Datasheet:
- View
