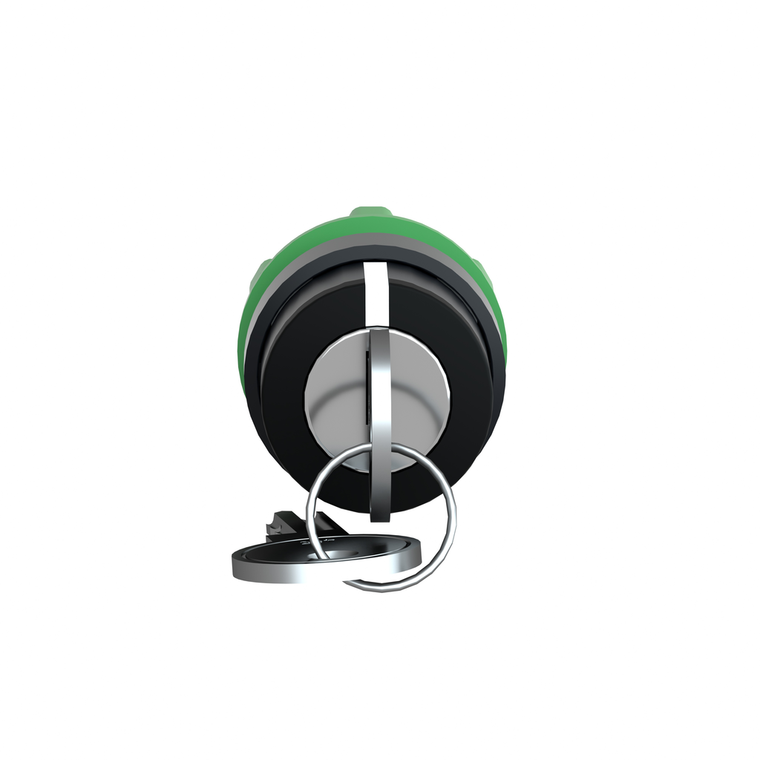

Schneider Electric ZB5AG9 Key Selector Operating He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AG9 Key Selector Operating He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AG9

UPC:

3389110905878

MPN:

Condition:

New

Mounting Diameter:

22 mm

Mechanical Durability:

1000000 cycles

Range Of Product:

Harmony XB5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ik Degree Of Protection:

IK06 IEC 50102

Mercury Free:

Yes

Cad Overall Depth:

72 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Circularity Profile:

ENVEOLI1710010EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Profile:

black key switch

Cad Overall Height:

29 mm

Environmental Disclosure:

ENVPEP1710010EN

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Rohs Exemption Information:

Yes

Product Or Component Type:

head for key selector switch

Device Short Name:

ZB5

Overvoltage Category:

class II IEC 60536

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Standards:

UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1

Device Presentation:

basic element

Head Type:

standard

Net Weight:

0.057 kg

Type Of Keylock:

key 455

Cad Overall Width:

29 mm

Product Certifications:

LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV || GL

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-70 °C

Operator Position Information:

3 positions +/- 45°

Key Withdrawal Position:

left

Type Of Operator:

stay put

Sale Per Indivisible Quantity:

1

Bezel Material:

dark grey plastic

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

China Rohs Regulation:

X

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Operation:

-40-70 °C
