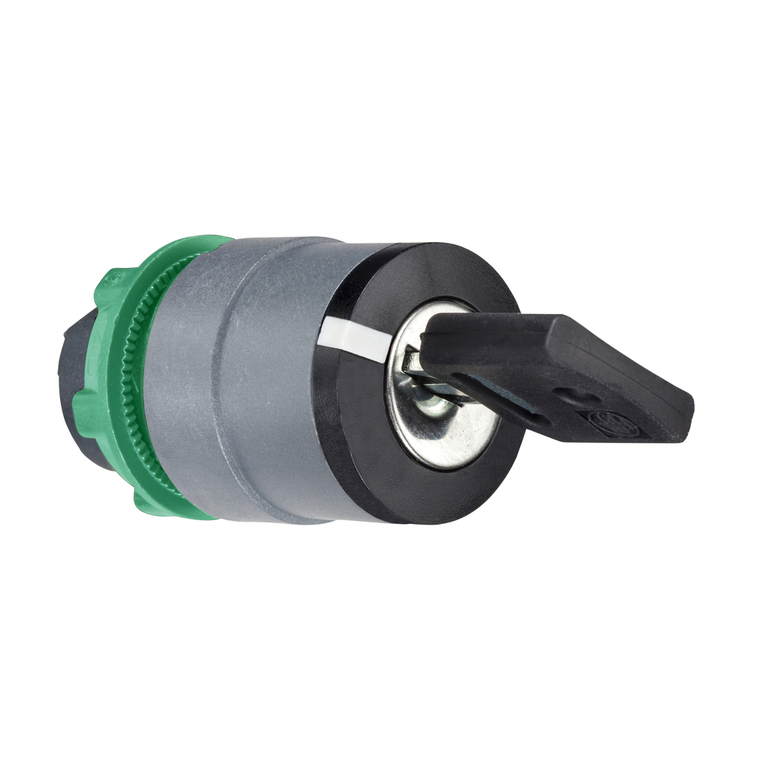

Schneider Electric ZB5AG9C0 Key Selector Operating He
Schneider Electric
$54.59
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AG9C0 Key Selector Operating He
This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66, making it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 1000000 cycles
- Key Withdrawal Position:
- left
- Mercury Free:
- Yes
- Cad Overall Height:
- 29 mm
- Product Or Component Type:
- head for key selector switch
- Cad Overall Width:
- 29 mm
- Type Of Keylock:
- key 455
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mounting Diameter:
- 22 mm
- China Rohs Regulation:
- X
- Head Type:
- standard
- Protective Treatment:
- TH
- Operator Position Information:
- 3 positions +/- 45°
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.057 kg
- Device Presentation:
- basic element
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || BV || GL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Bezel Material:
- plastic colour plated grey
- Type Of Operator:
- stay put
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Ik Degree Of Protection:
- IK06 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- black key switch
- Cad Overall Depth:
- 72 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Datasheet:
- View
