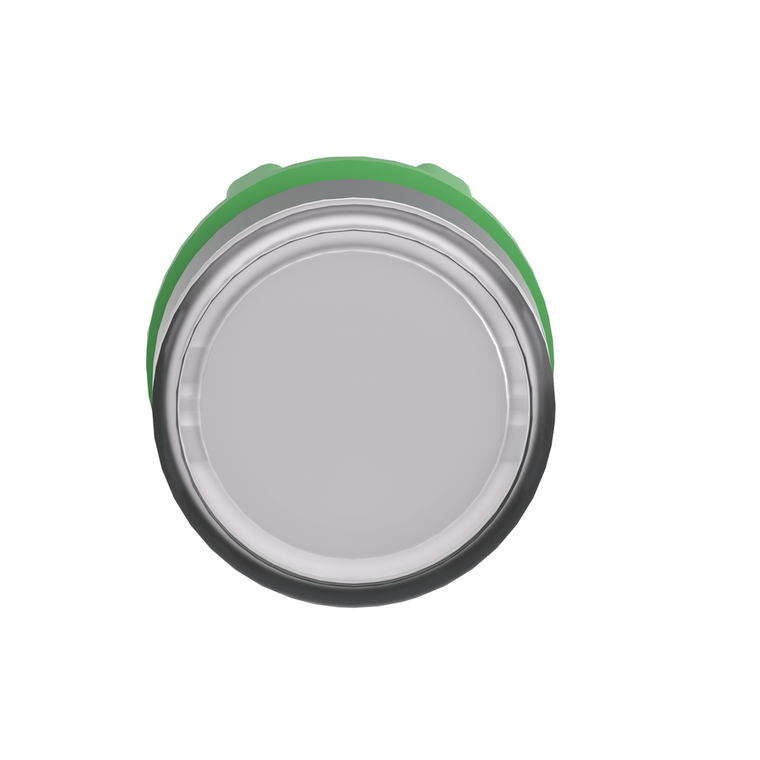

Schneider Electric ZB5AH013 Double Ill. Pushbutton He
Schneider Electric
$18.23
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated white flush button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ambient Air Temperature For Operation:
- -25-70 °C
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Circularity Profile:
- ENVEOLI1710010EN
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Ik Degree Of Protection:
- IK05 IEC 50102
- Product Compatibility:
- universal LED
- Electrical Shock Protection Class:
- class II IEC 60536
- Device Presentation:
- basic element
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Standards:
- UL 508 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Product Certifications:
- UL Listed || LROS (Lloyds register of shipping) || CSA || DNV || BV || GL
- Mechanical Durability:
- 5000000 cycles
- Cad Overall Width:
- 29 mm
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Mounting Diameter:
- 22 mm
- Operator Profile:
- white flush, unmarked
- Range Of Product:
- Harmony XB5
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Operator:
- push-push
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.017 kg
- Product Or Component Type:
- head for illuminated push-button
- Warranty:
- 18 months
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 30 mm
- Bezel Material:
- dark grey plastic
- Datasheet:
- View
